2,000A Peak current
1,000A Starting current
10,000mAh Rated capacity
37Wh Rated energy

U32 FEATURES

Every feature, with the original product detail intact.

Original A+ visuals carry the product story; the page adds a consistent reading order, confirmed specifications and the operating context that matters.

SuntNeew U32 portable car jump starter overview

U32 overview

A larger display for the moment your vehicle will not start.

U32 brings emergency starting, device power and a practical roadside light together. The original product information keeps 10,000mAh / 37Wh, 2,000A peak and 1,000A starting current visible at a glance.

SuntNeew U32 verified product specifications

Verified essentials

The numbers that matter, in one view.

U32 is specified at 150 × 75 × 25mm and 480g, with ABS+PC housing, PD 18W Type-C recharging and a 5W emergency light. See the full Specifications panel for port limits and safe-use guidance.

SuntNeew U32 starting performance for compatible 12V vehicles

Starting performance

Built for the compatible 12V vehicle.

The documented engine reference is up to 6.5L Gas or 3.5L Diesel. The 30+ starts reference is based on an internal 1.6L test vehicle at 23°C; battery health, temperature and vehicle condition affect results.

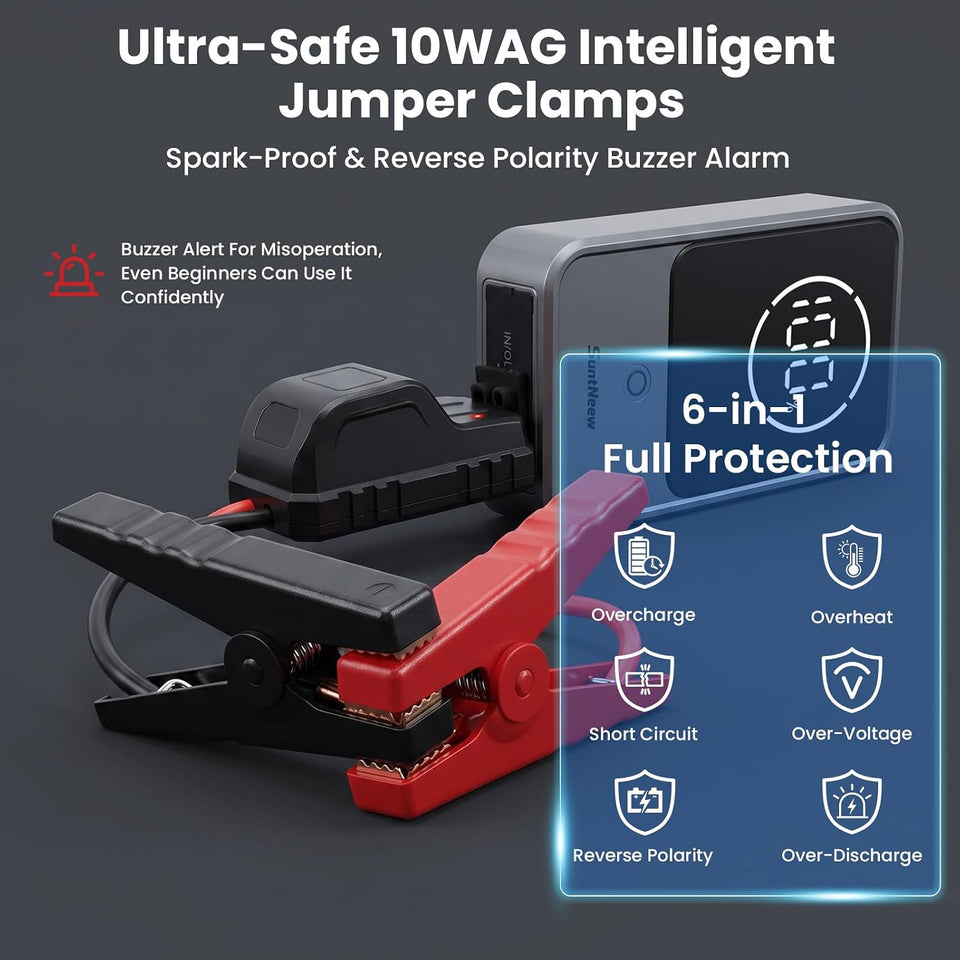

SuntNeew U32 intelligent smart clamp protection

Smart clamp guidance

A clear connection routine, built into the clamp.

The EC5 smart clamp uses a heavy-duty 10AWG cable with buzzer and status guidance. Confirm the connection, wait for the green indication and follow the four-step sequence in the manual.

SuntNeew U32 operating temperature range

All-season readiness

Designed for cold starts and hot-road days.

U32 has a documented operating temperature range of -20°C–60°C. Keep the unit clean and dry, and do not rinse or use it as a waterproof device.

SuntNeew U32 10000mAh capacity feature

Stored energy

Power that stays ready between trips.

The 10,000mAh / 37Wh battery supports repeated roadside readiness and everyday USB device power. Recharge after use and at least once every three months during long-term storage.

SuntNeew U32 six-in-one safety safeguards

Six visible safeguards

Protection made visible before you start.

The original six-in-one protection graphic is retained: reverse polarity, short circuit, over-voltage, over-current, overheat and over-discharge. U32 is safety tested to UL 2743; the product-level test-report scope is shown in Safety & Compliance.

SuntNeew U32 daily driving and outdoor scenarios

Ready where you park

A small emergency kit for ordinary and unexpected stops.

Keep U32 accessible for commutes, road trips, outdoor weekends and low-battery moments. Inspect the clamps before use and always work with a compatible 12V vehicle battery.

SuntNeew U32 5W LED emergency light

Emergency light

See the connection, signal the situation.

The 5W LED has Steady, Flashing and SOS modes. Hold the power key for two seconds or double-click to turn the light on or off, then short-press to cycle modes.

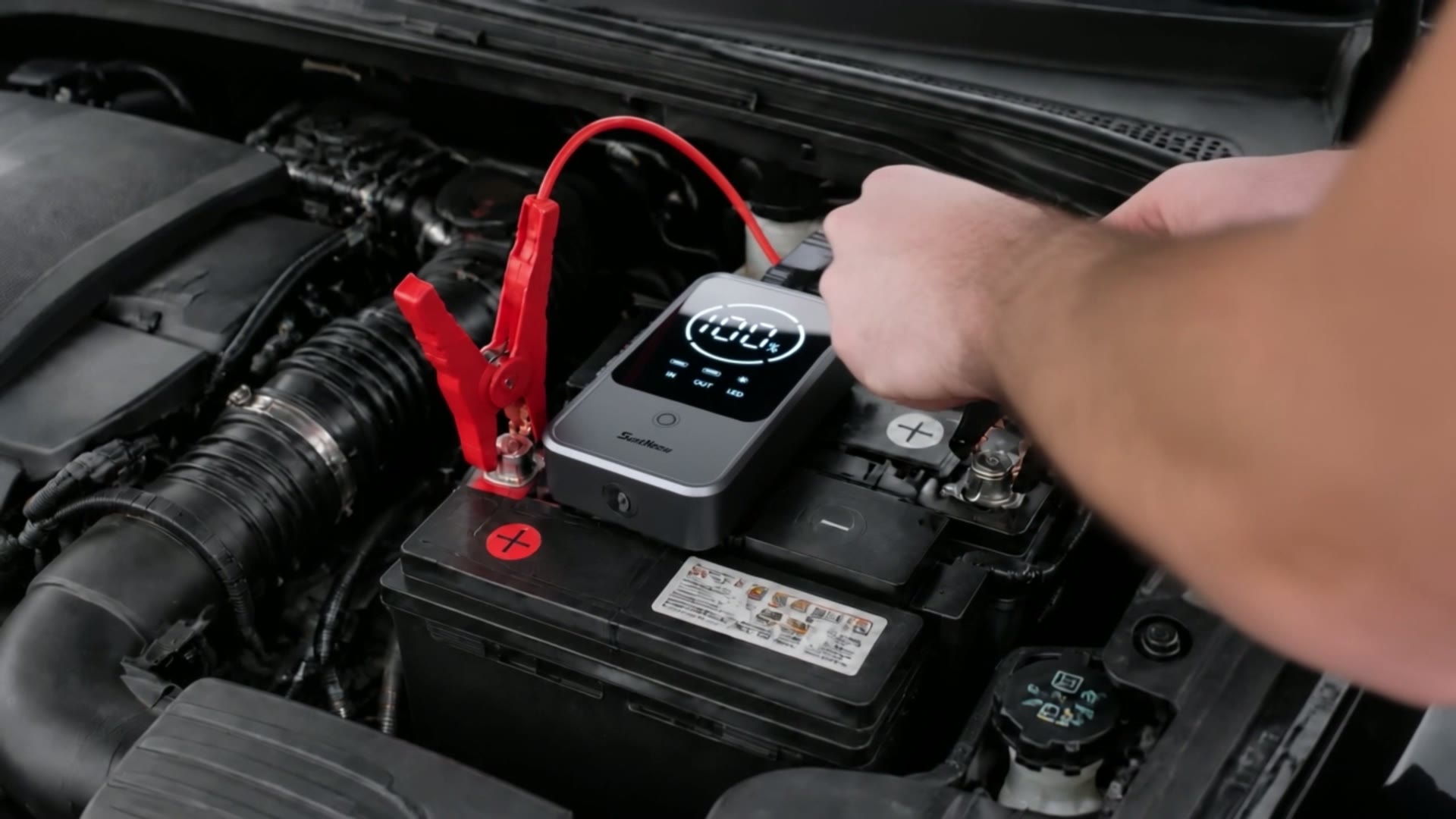

Four U32 jump-start steps

Four-step start

Connect deliberately. Start with confidence.

Charge U32 to at least 50%, insert the EC5 smart clamp, connect red to positive and black to negative, then start within 30 seconds after the clamp shows green. Disconnect once the vehicle has started.

Product details

U32 technical specifications

Confirmed values are drawn from the U32 English manual, approved A+ materials and the documented start-count test. Follow the manual’s operating sequence and safety limits before every use.

Starting performance View details
Rated capacity
10,000mAh
Rated energy
37Wh
Starting current
1,000A
Peak current
2,000A
Engine reference
Up to 6.5L Gas / 3.5L Diesel
Starting reference
30+ starts (1.6L test vehicle at 23°C)
Charging, ports & clamp View details
Type-C input
5V/2A, 9V/2A (PD 18W)
USB-A output
Two ports; 5V/2.4A total max
Recharge time
3–5 hours
Emergency light
5W; Steady, Flashing and SOS
Smart clamp
EC5; 10AWG cable; six visible safeguards
Physical & operating limits View details
Housing
ABS + PC
Product size
150 × 75 × 25mm
Net weight
480g / 1.06lb
Operating temperature
-20°C–60°C
Water exposure
Not waterproof; keep dry and do not rinse

What is included

In the box

  • U32 main unit x1
  • Smart clamp x1
  • USB-C charging cable x1
  • User manual x1
  • Color box x1
  • Tool bag / carrying pouch x1

Reference material

Manuals & Documents

User Manuals

Safety & Compliance

U32 SUPPORT

Frequently asked questions

Which vehicles is U32 designed to support?

U32 is for compatible 12V vehicles, with a stated reference of up to 6.5L gasoline or 3.5L diesel engines. Confirm the vehicle, battery condition and manual before use.

What does 30+ starts mean?

The 30+ start reference is based on a 1.6L test vehicle at 23°C. Actual results vary with vehicle type, battery health, engine condition and temperature.

What can the Type-C and USB-A ports do?

Recharge U32 through Type-C at 5V/2A or 9V/2A PD 18W. The two USB-A ports support everyday device charging with a shared 5V/2.4A total maximum output.

What light modes does U32 have?

The 5W emergency light has Steady, Flashing and SOS modes. Hold the power key for two seconds or double-click to turn it on or off, then short-press to cycle modes.

What safety protection does the smart clamp provide?

The original 6-in-1 protection graphic shows reverse polarity, short circuit, over-voltage, over-current, overheat and over-discharge safeguards. Always confirm the clamp’s green indication before starting.

Can I use U32 in rain or rinse it clean?

No. U32 is not waterproof. Keep the unit, clamp and ports dry; do not submerge or rinse the product.
