Choose the 12.8V 314Ah RV battery when longer reserve matters more than maximum output: 4,019.2Wh in the same 522 × 268 × 220mm enclosure as 230Ah, adding 1,075.2Wh / 36.5% more energy with 2,010W / 157A continuous output and Bluetooth 5.0 monitoring.
Multi-pack quantity
Choose 1, 2, 5 or 10 units, or use a custom quantity.
230AH OR 314AH?
The enclosure size is the same. Pick by priority, then use the Power Calculator to check the appliances you run.
314AH FEATURES
Choose 314Ah for the hours: it puts 1,075.2Wh / 36.5% more energy than 230Ah in the same enclosure, while its 2,010W continuous limit defines which loads it is built to serve.
LONGER RESERVE, SAME FOOTPRINT
When the next useful charge may be tomorrow rather than today, 4,019.2Wh keeps more energy behind refrigeration, work, network and overnight essentials.
SAME BAY. MORE TIME BETWEEN CHARGES.
230Ah and 314Ah share the stated 522 × 268 × 220mm outer dimensions. Choose 314Ah when the bay cannot grow but the reserve needs to.
KNOW THE TRADEOFF
314Ah is the reserve-first model, not the higher-output model. Choose it when 2,010W / 157A covers the simultaneous load; 200A remains a BMS protection threshold, not a continuous operating rating.

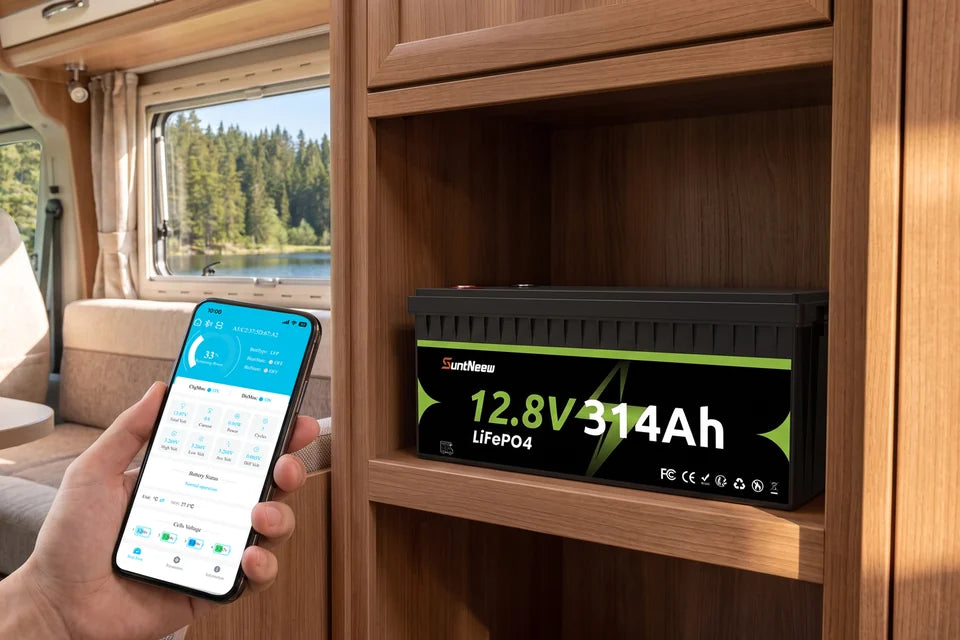

BLUETOOTH 5.0 MONITORING
Review state of charge, voltage, current and temperature from the supported app before you change loads or charging plans.
HIGH-RESERVE BANK PLANNING
Series and parallel support lets a 314Ah installation grow when the enclosure, restraint, conductors and protection devices are designed together.
COLD-WEATHER PROTECTION
Low-temperature charging protection pauses charging below the documented limit and resumes after the battery returns to a suitable temperature.
Verified product data
The key capacity, charging, protection and installation values are transcribed from the current English product manual. Use the manual for the full operating sequence and safety limits.
Installation planning
Product documentation
314Ah planning
The rated energy is 4,019.2Wh from the documented 12.8V and 314Ah ratings. Actual usable energy depends on operating limits, load and system settings.
157A is the maximum continuous charge/discharge value used for normal system sizing. 200A is the BMS protection threshold, not a continuous operating rating. Use 63A as the recommended charge-current reference and size every system component to its lowest limit.
The stated 522 × 268 × 220 mm enclosure dimensions are the same, but the 314Ah battery weighs 26kg. Recheck structure, restraint, access and the complete electrical design for the exact model.
IP65 indicates a dust-tight enclosure with protection against water jets. It is not an immersion rating; keep the battery location, terminals and cable routing protected and follow the installation manual.
Choose 314Ah when 2,010W covers your simultaneous load and you want 1,075.2Wh / 36.5% more reserve in the same 522 × 268 × 220mm enclosure. Choose 230Ah when 2,944Wh covers your time between charges and you want 2,560W continuous output, 5.4kg less weight and the lower current single-unit price. Test your devices in the Power Planner.
The current English product manual is available in Documents on this page. Review it together with the charger, inverter and RV manufacturer instructions before installation.
