Built for the system

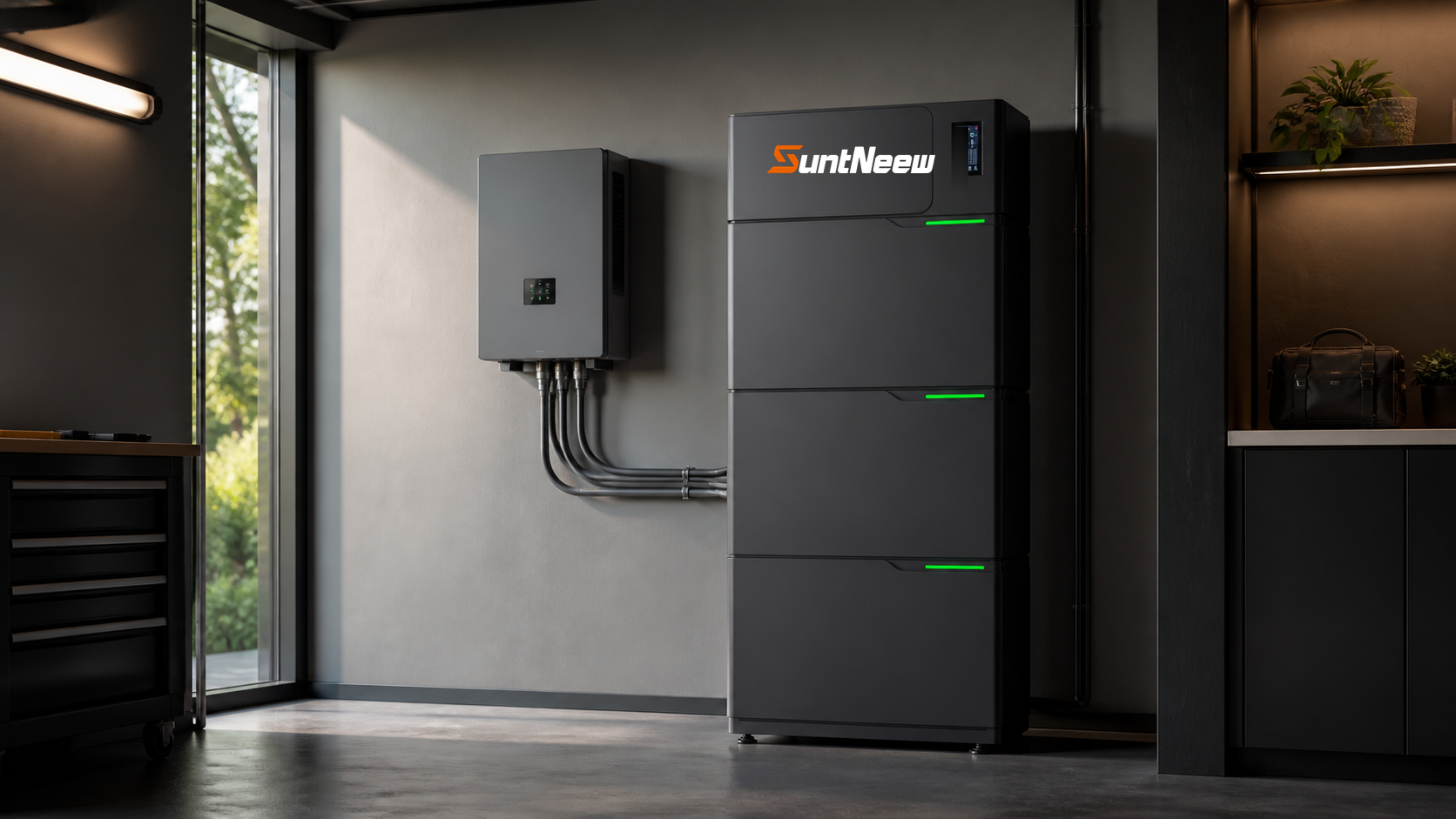

A high-voltage stack with a dedicated place in the home
VH is designed as part of a complete home-energy system. Begin with the inverter protocol, installation space and delivery plan, then choose the configuration that fits.

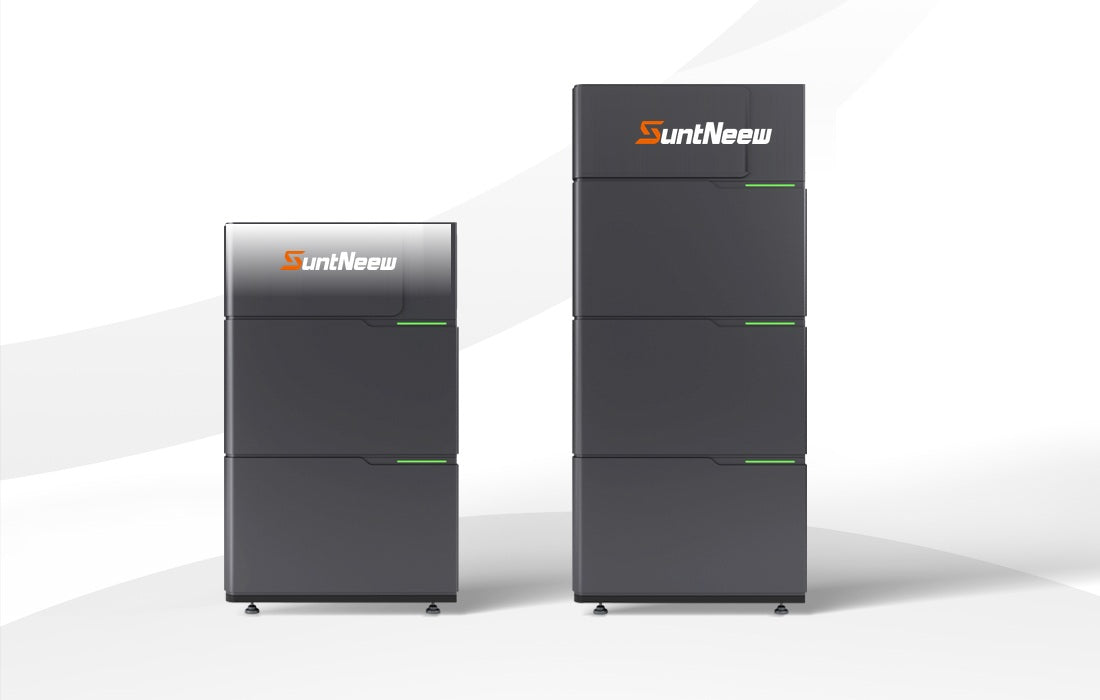

SuntNeew VH High-Voltage Home Energy Storage System
Tax excluded. Taxes and shipping calculated at checkout
High-voltage LFP home energy storage in 10.24kWh and 15.36kWh configurations. Select a capacity, choose your quantity and purchase online; review inverter compatibility and installation requirements before installation.
Multi-pack quantity
Build a VH multi-pack
Choose 1, 2, 5 or 10 units, or use a custom quantity.
SuntNeew VH High-Voltage Home Energy Storage System
Sale price$1,599.00
10.24kWh
Usable capacity
102.4V
Rated voltage
2 modules
5.12kWh per module
15.36kWh
Usable capacity
153.6V
Rated voltage
3 modules
5.12kWh per module
Smart BMS
CAN / RS485 communication
Home energy storage

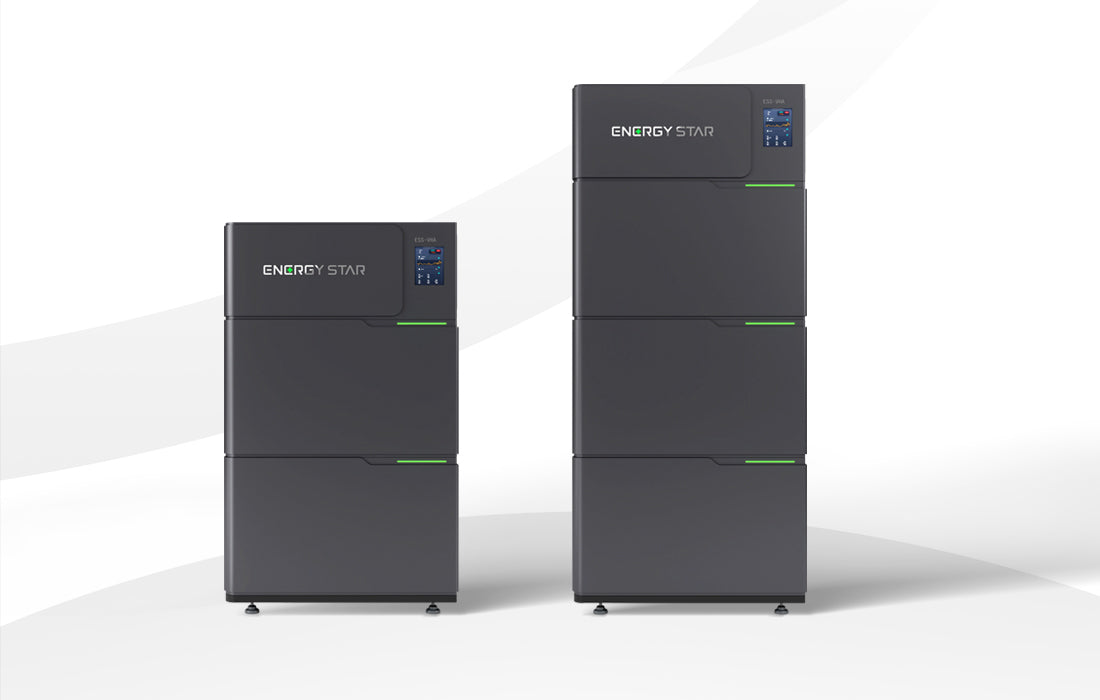

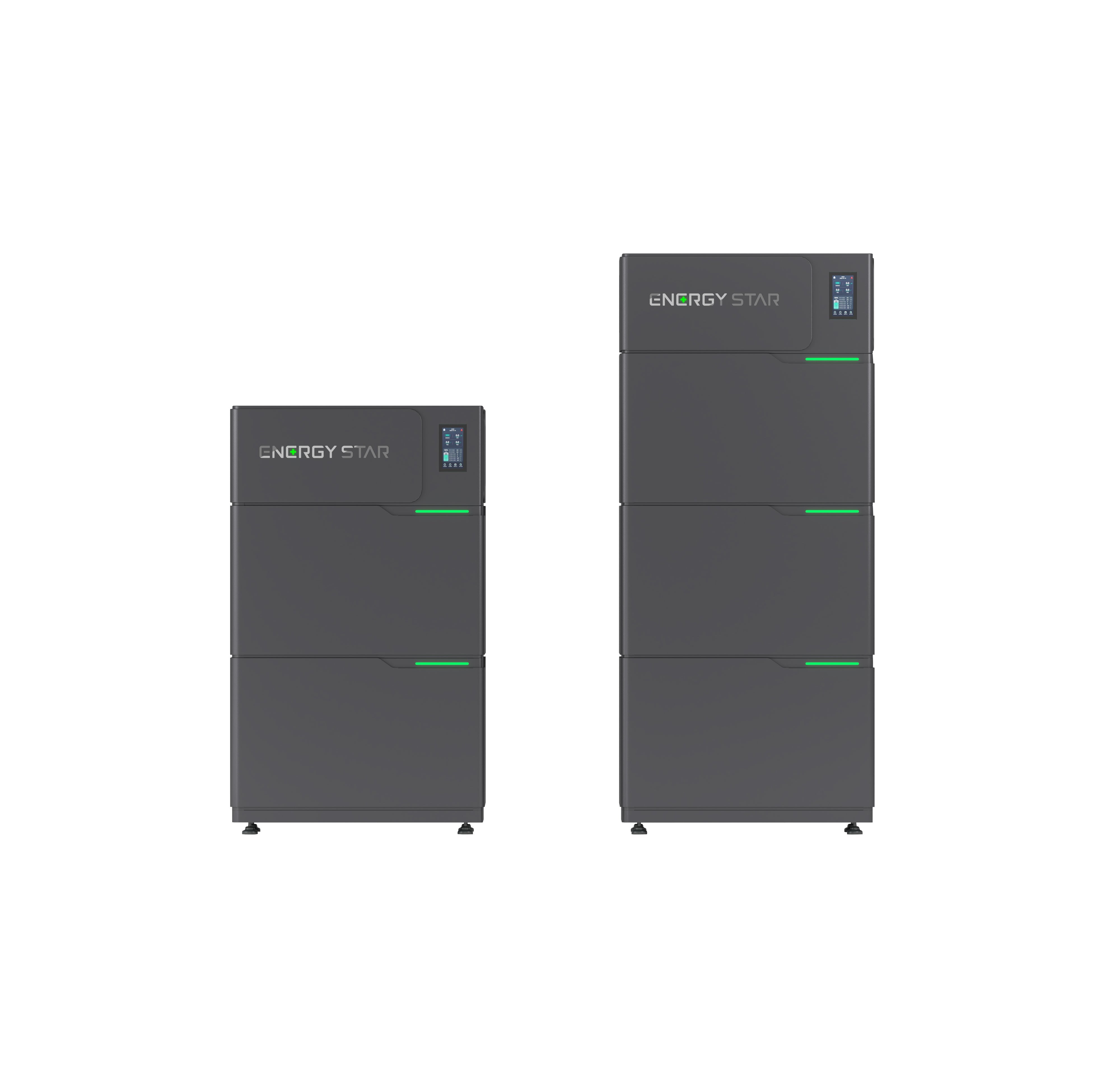

A modular high-voltage system sized around the home
SuntNeew modular storage in two configurations. Select the capacity first, then align the system with the inverter and installation plan.

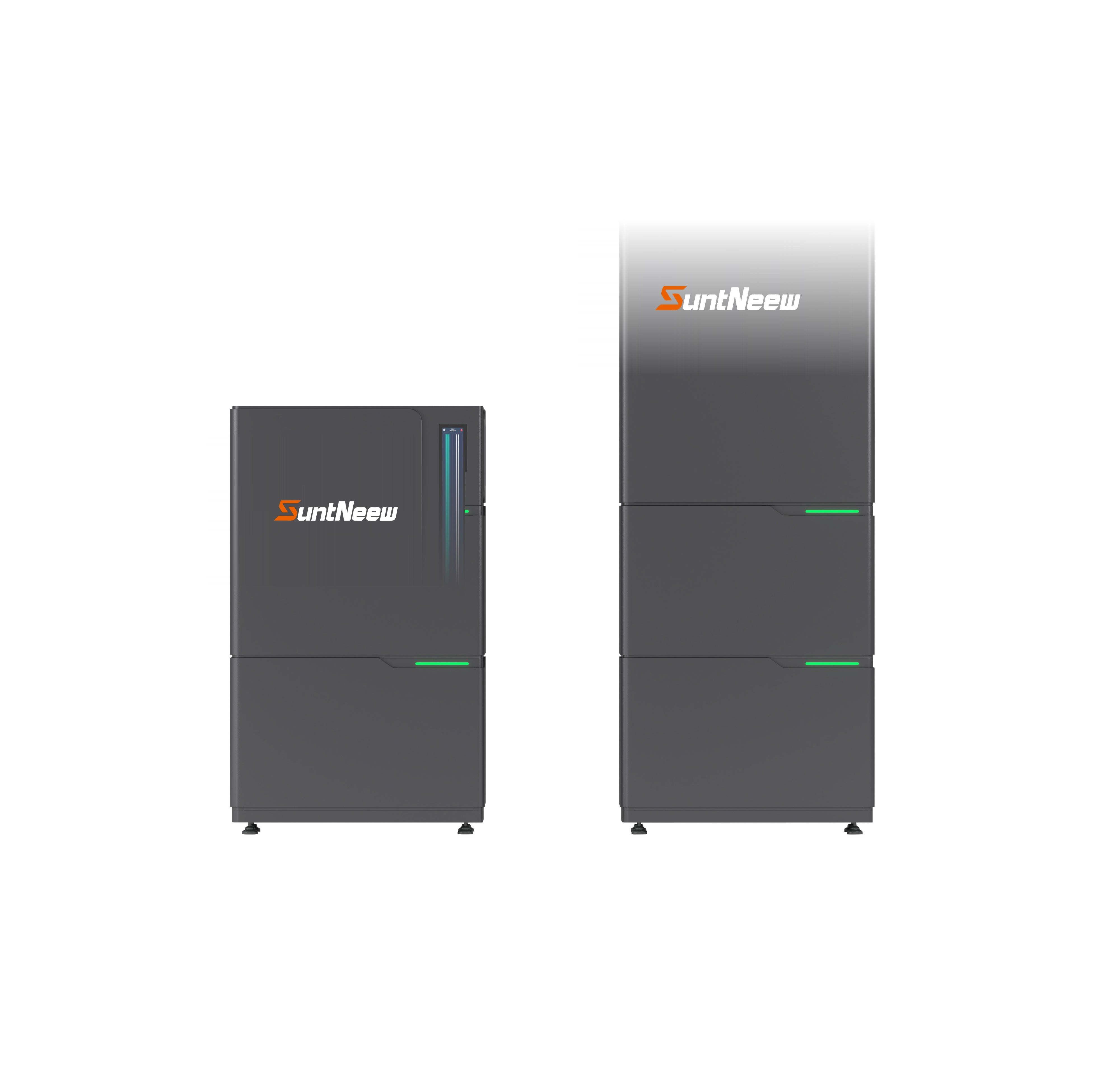

Modular high voltage
Choose two or three 5.12kWh battery modules
VH10A provides 10.24kWh usable capacity; VH15A provides 15.36kWh. Both use LFP cells, a smart BMS and vertical natural-convection architecture.

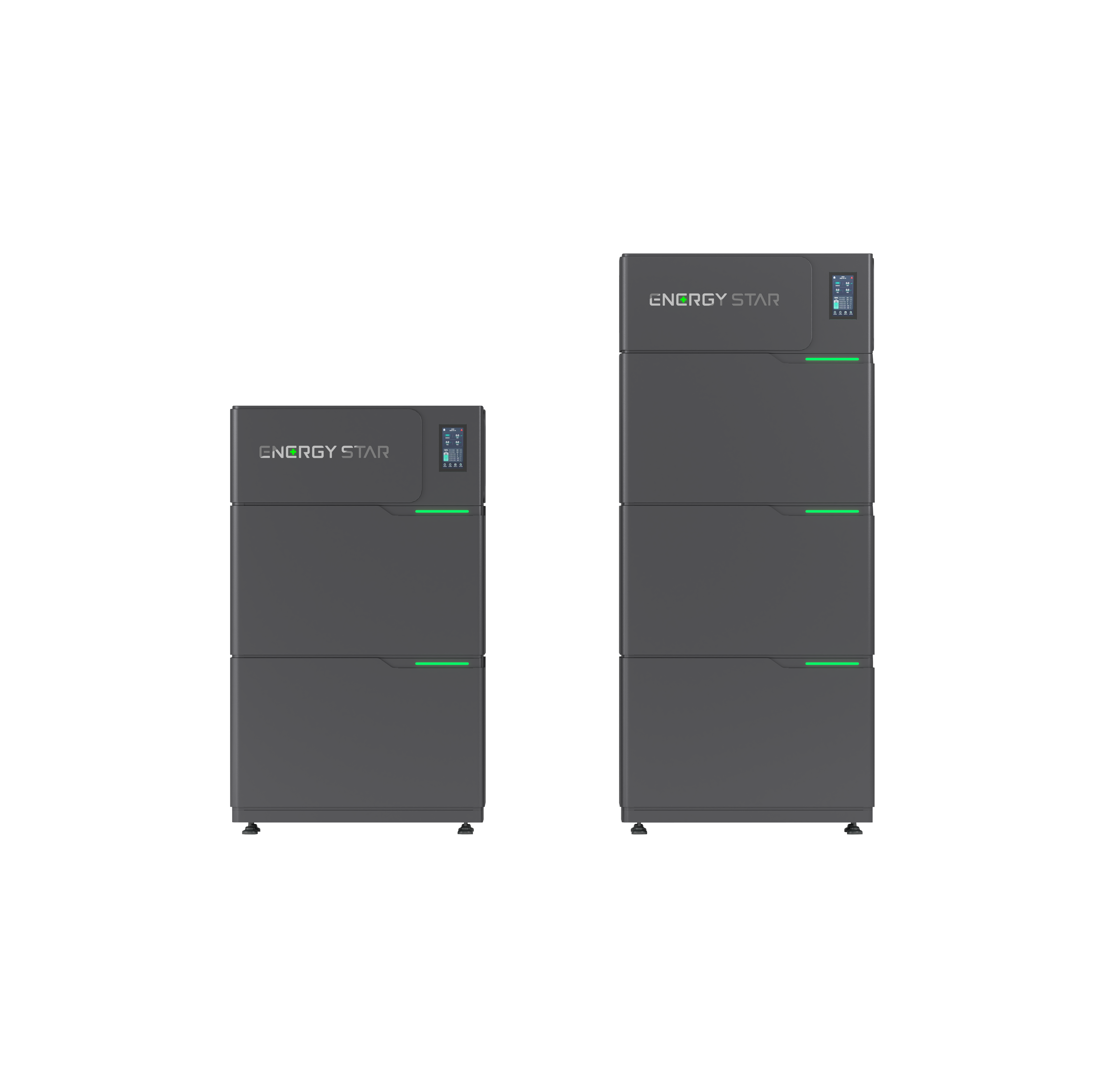

Configuration visible
See the system scale before you open a specification
The selected VH configuration changes the module count, height, rated voltage and project fit. Choose the capacity above to reveal its matching proof figures and detailed fields.

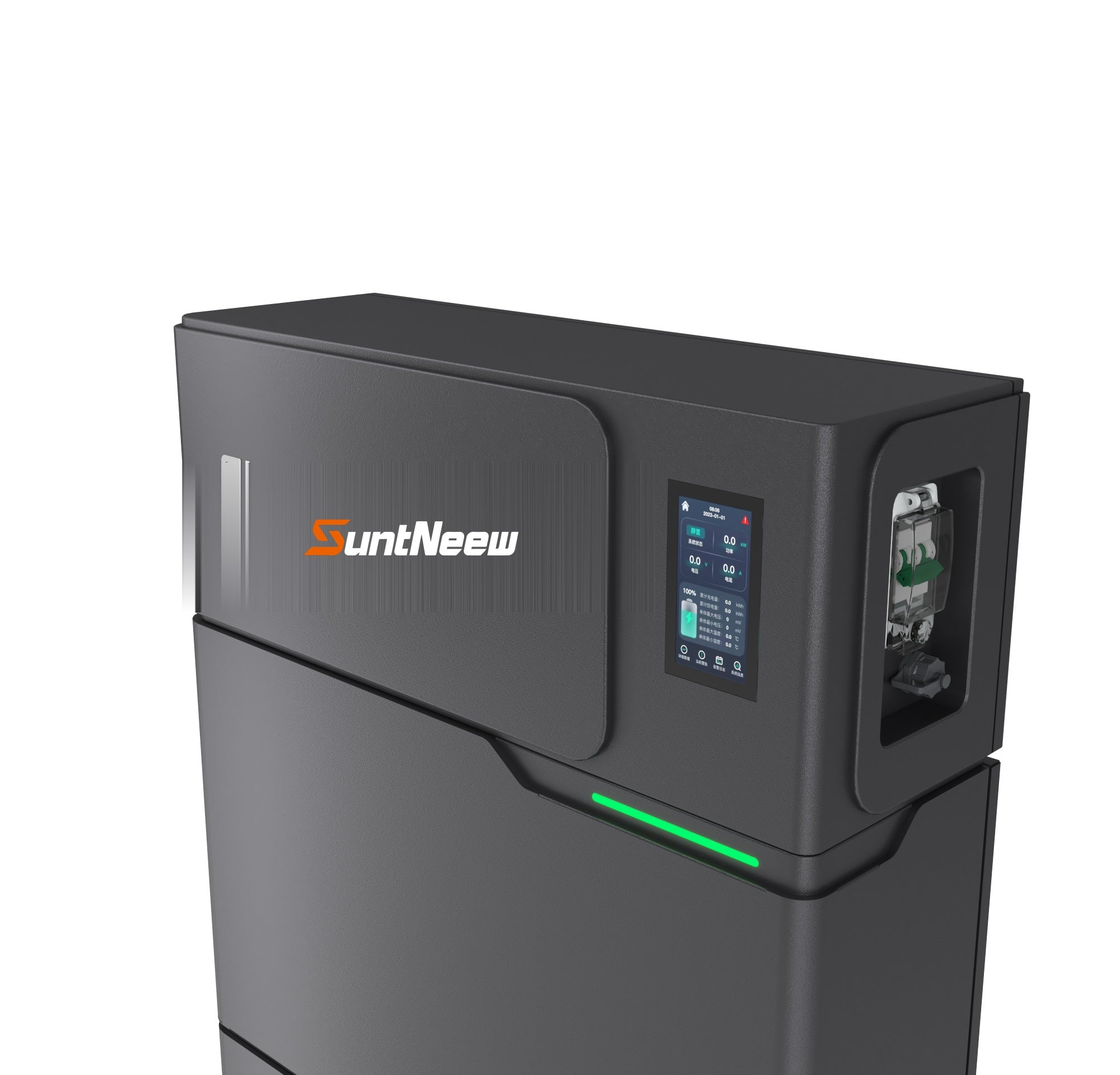

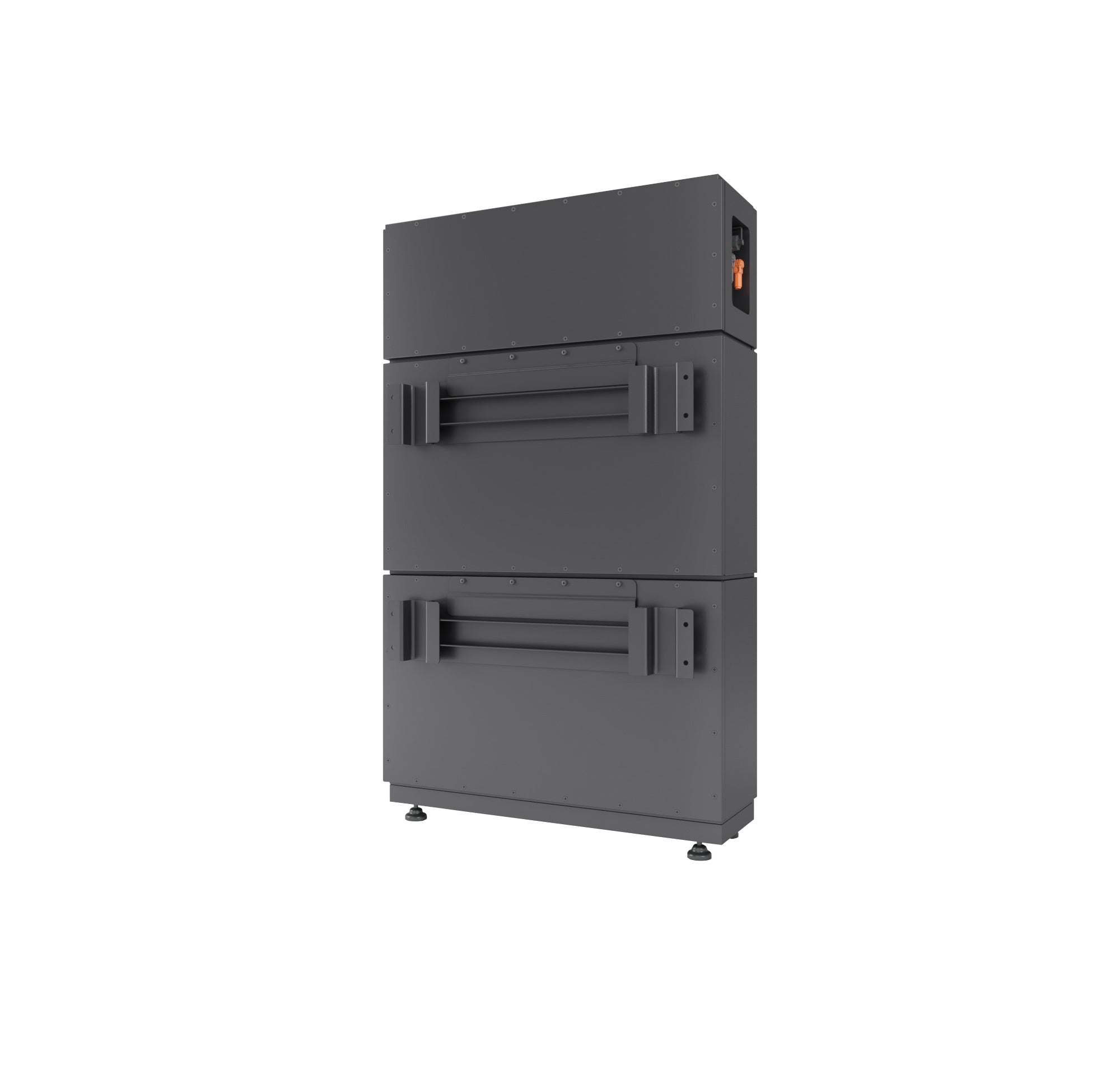

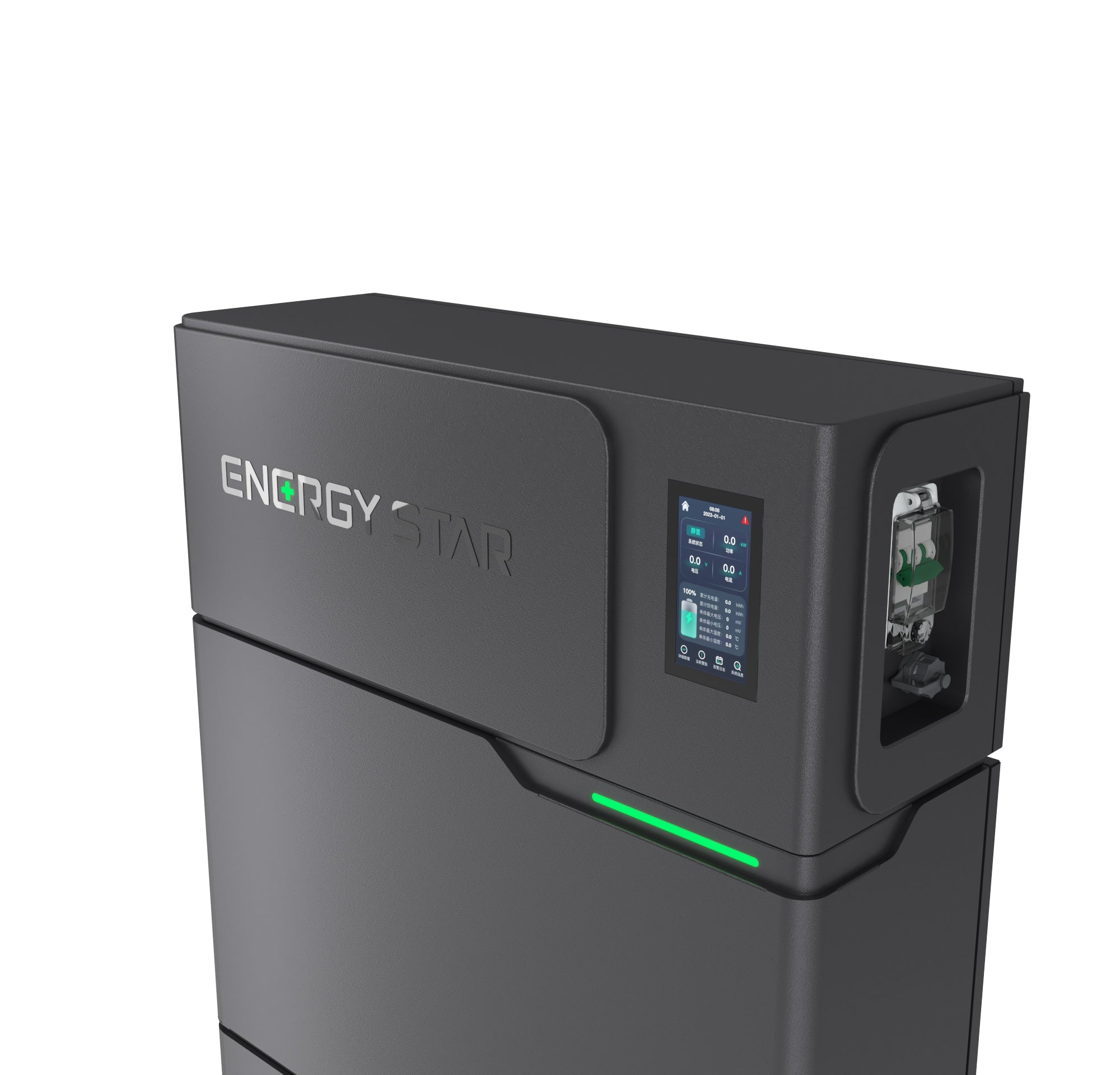

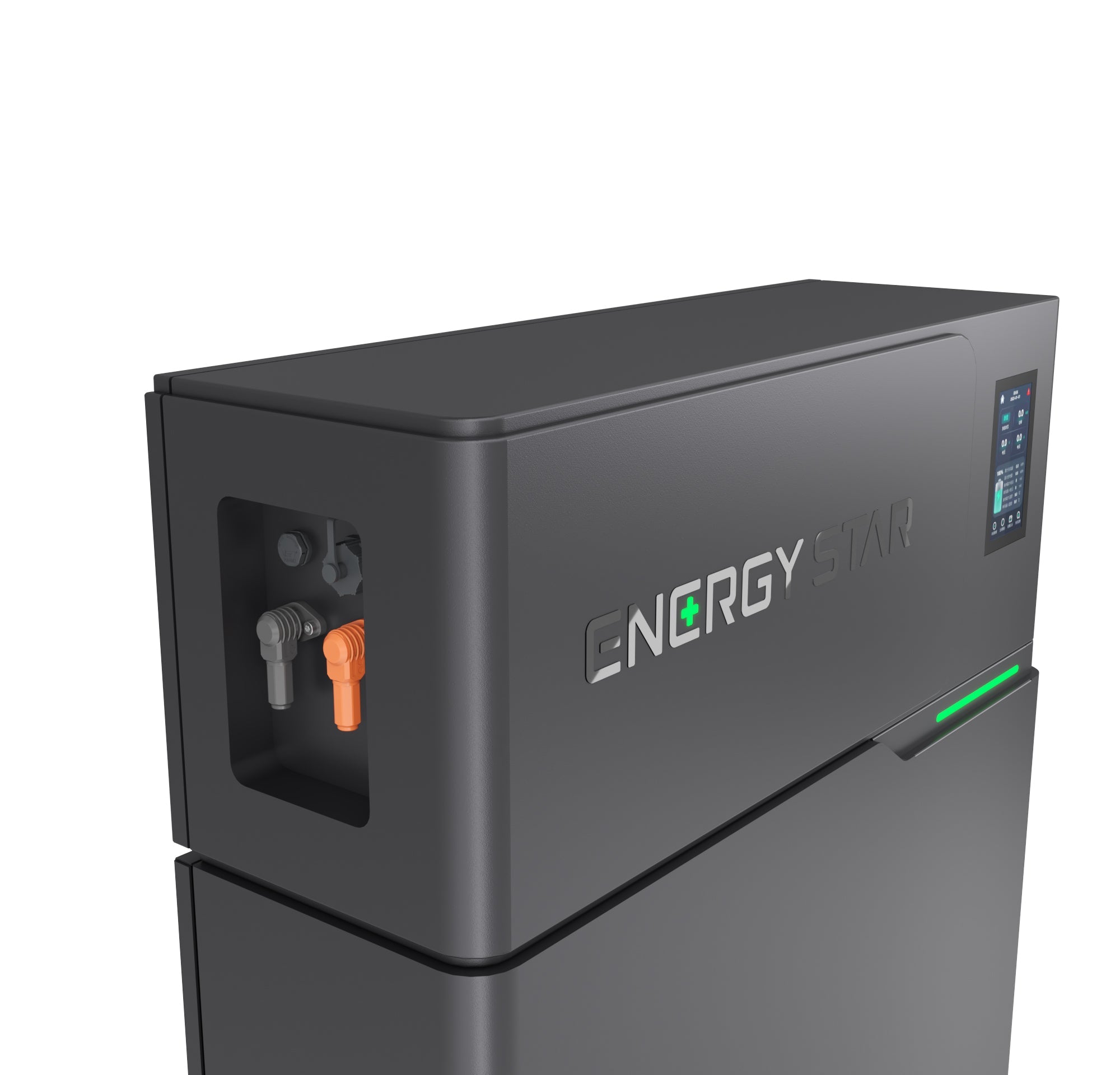

Hardware detail

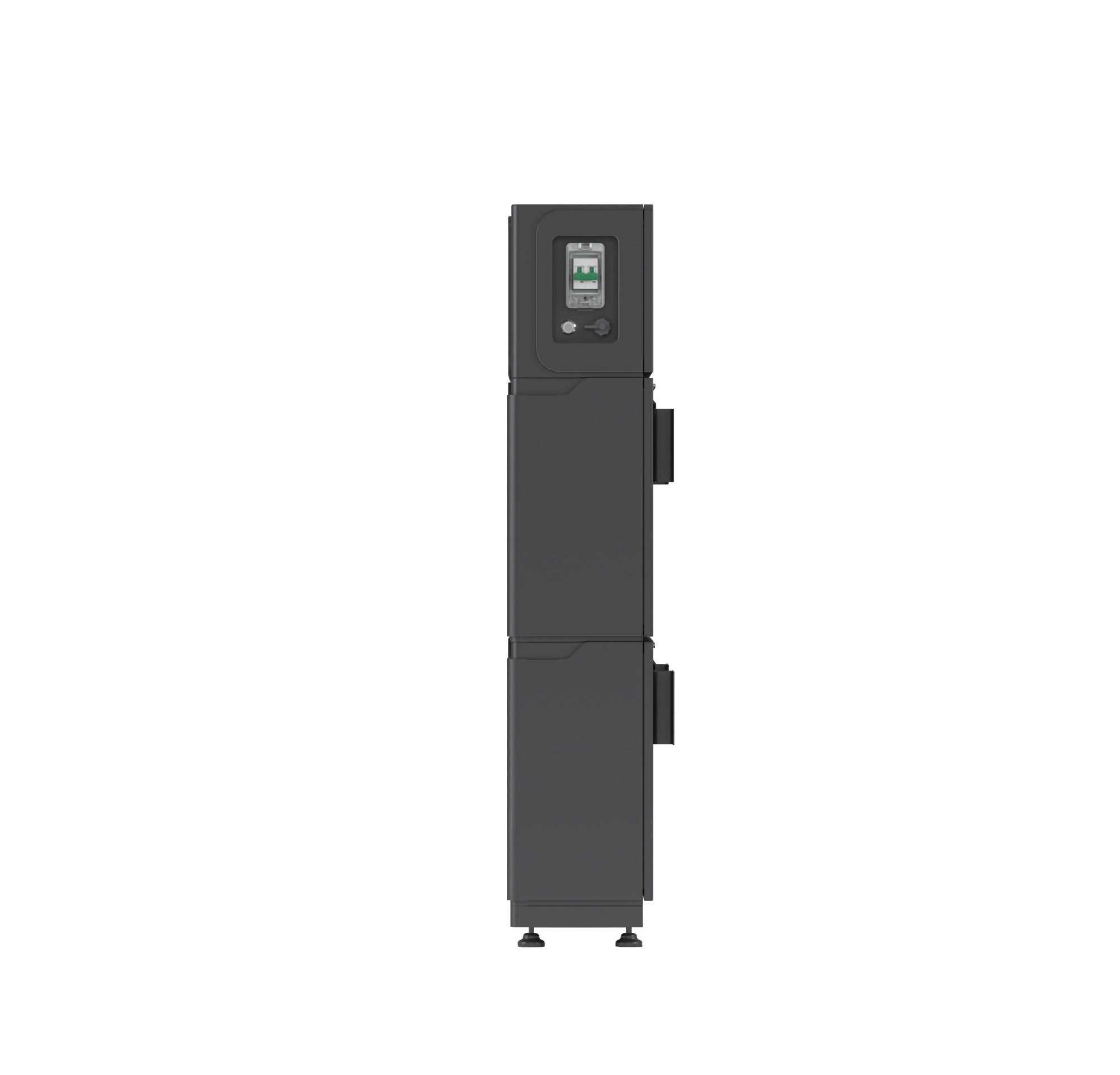

A vertical cabinet architecture designed as a complete system
See the cabinet form, displays and module layout before you move into the electrical and installation details below.
System fit
Choose the configuration before finalizing the system
Rated voltage, system size and installation scope change with the selected capacity. Review the inverter protocol, delivery requirements and installation plan before purchase and installation.
Configuration data

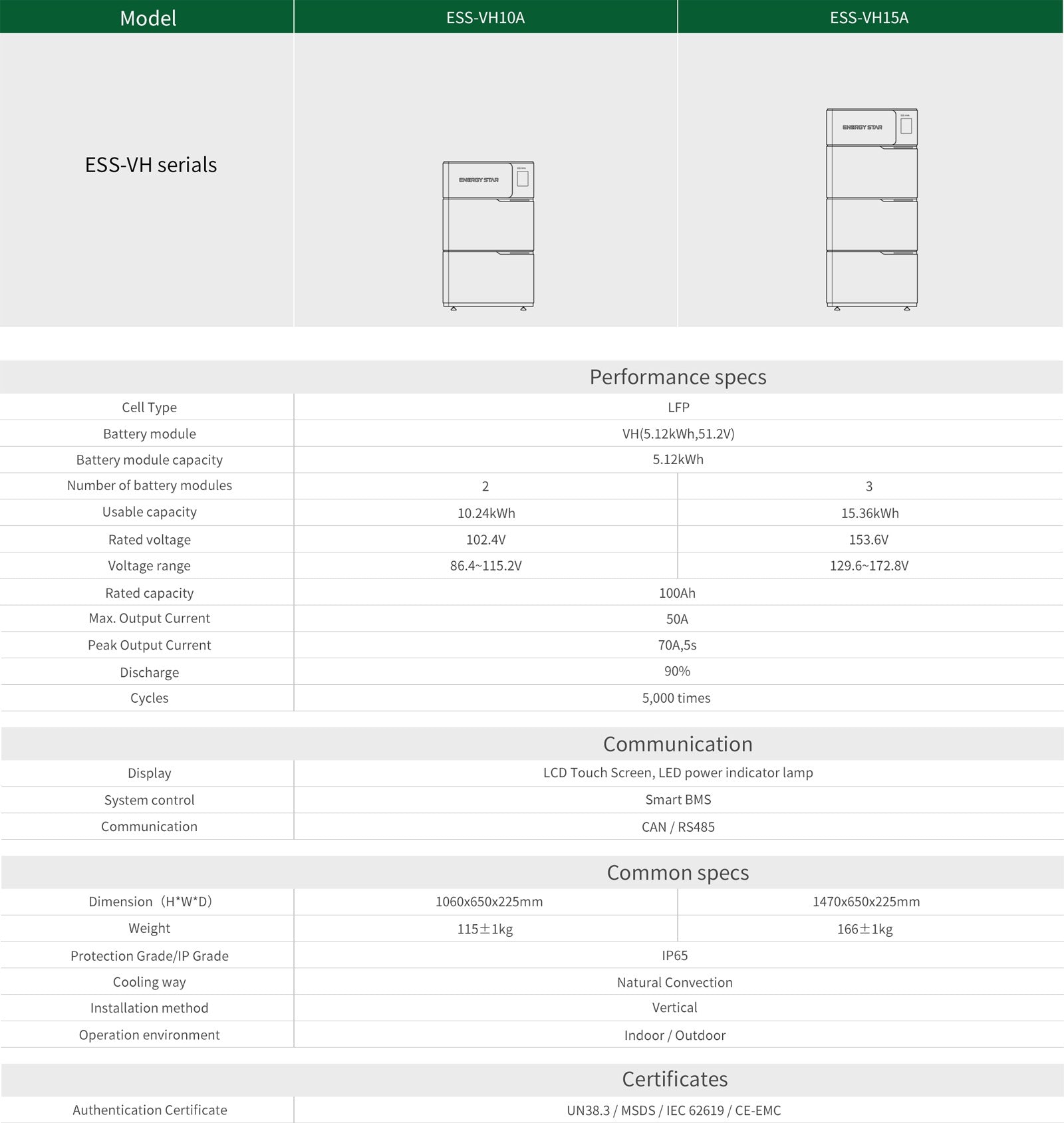

VH10A and VH15A specifications
The four decision-making numbers stay visible above. Open a category only when you need deeper electrical or installation detail.
Capacity & output View details
- Cell chemistry
- LFP
- Battery module
- 5.12kWh, 51.2V
- Usable capacity
- 10.24kWh
- Rated voltage
- 102.4V
- Usable capacity
- 15.36kWh
- Rated voltage
- 153.6V
- Max / peak output current
- 50A / 70A for 5s
- Depth of discharge
- 90%
- Cycle life
- 5,000 cycles
System architecture View details
- Battery modules
- 2
- Voltage range
- 86.4-115.2V
- Battery modules
- 3
- Voltage range
- 129.6-172.8V
- Communication
- CAN / RS485
- Display
- LCD touch screen, LED power indicator
Installation & environment View details
- Dimensions (H x W x D)
- 1060 x 650 x 225mm
- Weight
- 115 +/- 1kg
- Dimensions (H x W x D)
- 1470 x 650 x 225mm
- Weight
- 166 +/- 1kg
- Cooling / installation
- Natural convection / vertical
- Installation environment
- Confirm site conditions with a qualified installer
Purchase notes
Before installation
- Selected VH battery system configuration
- Review the inverter communication and electrical specifications before installation
- Confirm the delivery destination and any local receiving requirements
- Use a qualified installer and follow local electrical requirements
SuntNeew documentation
Manuals & Documents
User Manuals & Product Sheets
System planning
Frequently asked questions
Which size should I choose?
VH10A provides 10.24kWh; VH15A provides 15.36kWh. Selection also depends on inverter voltage window, protocol, daily consumption, backup load and installation constraints.
Can I buy a VH system online?
Yes. Select the capacity and quantity, then use Add to cart or Buy it now. Review inverter compatibility and local installation requirements before installation.
How should I assess the installation environment?
Confirm site exposure, mounting, inverter compatibility and local electrical requirements with a qualified installer for the intended project.
Which documents are available?
The current product specification sheet is available on this page. Contact support only if you need destination-specific technical documentation.
