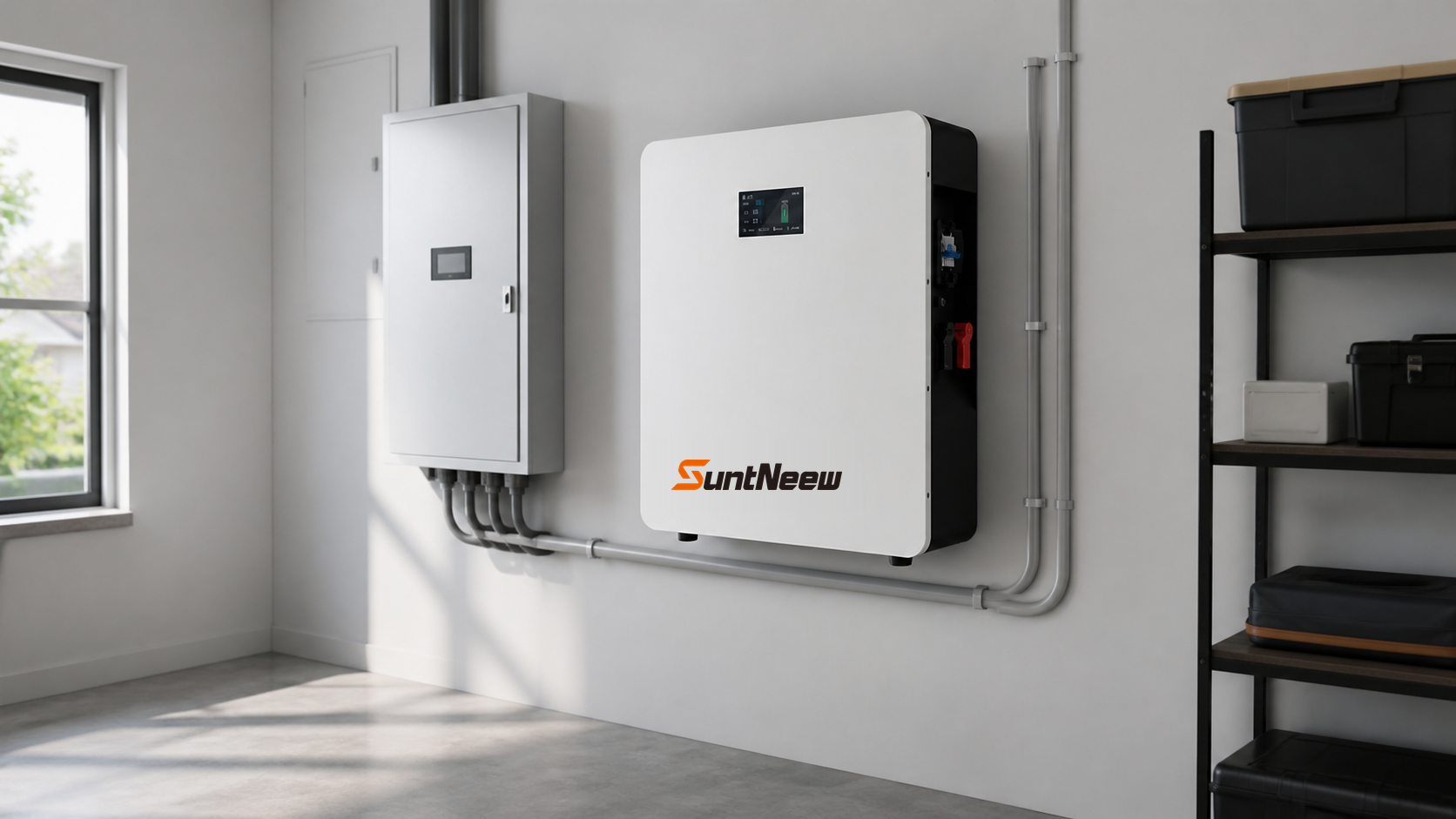

At home in the energy room
A compact battery with a clear place in the system
WL5A brings 5.12kWh of low-voltage storage into a compact home-energy setup. Use the product dimensions and electrical details below to plan the installation.

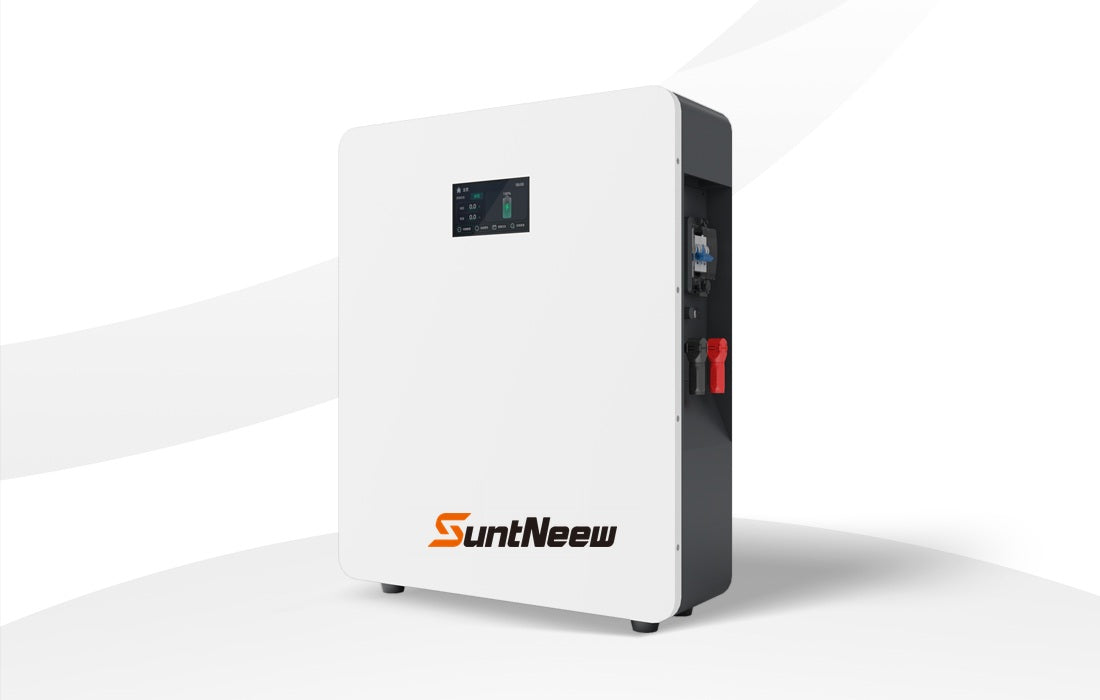

SuntNeew WL5A 5.12 kWh Low-Voltage Home Battery
Tax excluded. Taxes and shipping calculated at checkout
51.2V, 100Ah low-voltage LFP home battery with 5.12kWh rated capacity. Choose your quantity and purchase online; review inverter compatibility and installation requirements before installation.
Multi-pack quantity
Build a WL5A multi-pack
Choose 1, 2, 5 or 10 units, or use a custom quantity.
SuntNeew WL5A 5.12 kWh Low-Voltage Home Battery
Sale price$1,485.75
5.12kWh
Rated energy
51.2V / 100Ah
Low-voltage LFP system
Up to 9 sets
Maximum connection
CAN / RS485
Wi-Fi and Bluetooth listed
Home energy storage
A compact 51.2V battery for home-energy systems
SuntNeew low-voltage storage for systems that need a compact 5.12kWh starting point. Match the inverter protocol, site conditions and installation plan to the product.
Compact low voltage
5.12kWh in a wall or floor-mounted enclosure
WL5A combines a 51.2V, 100Ah LFP battery with an LCD touch screen plus CAN, RS485, Wi-Fi and Bluetooth communication.

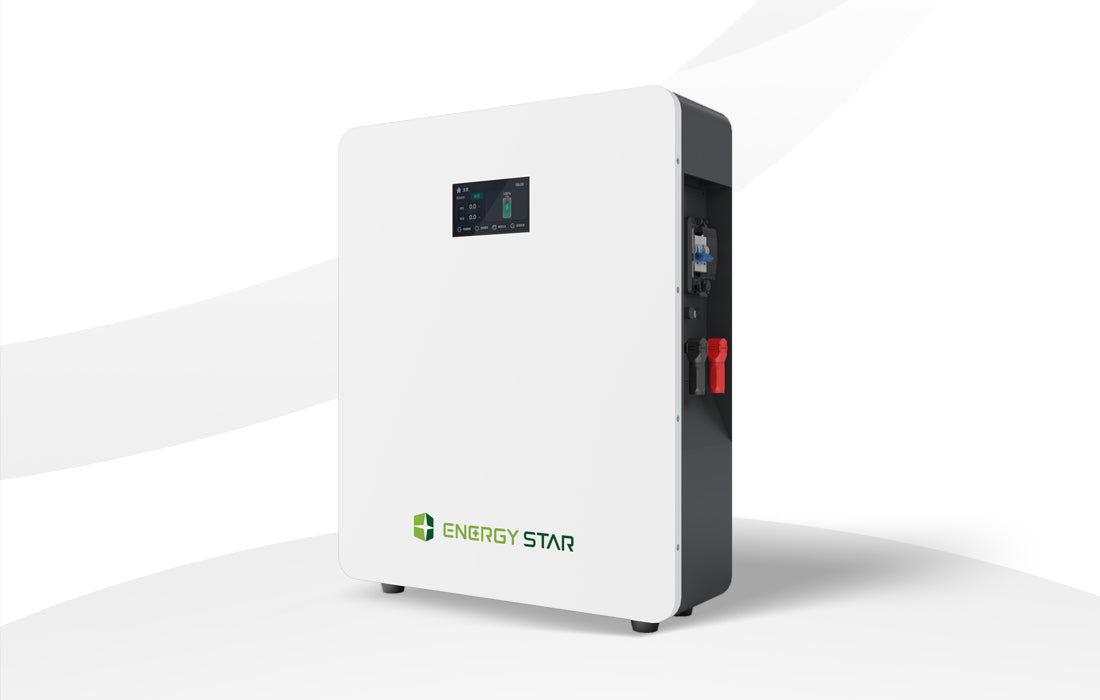

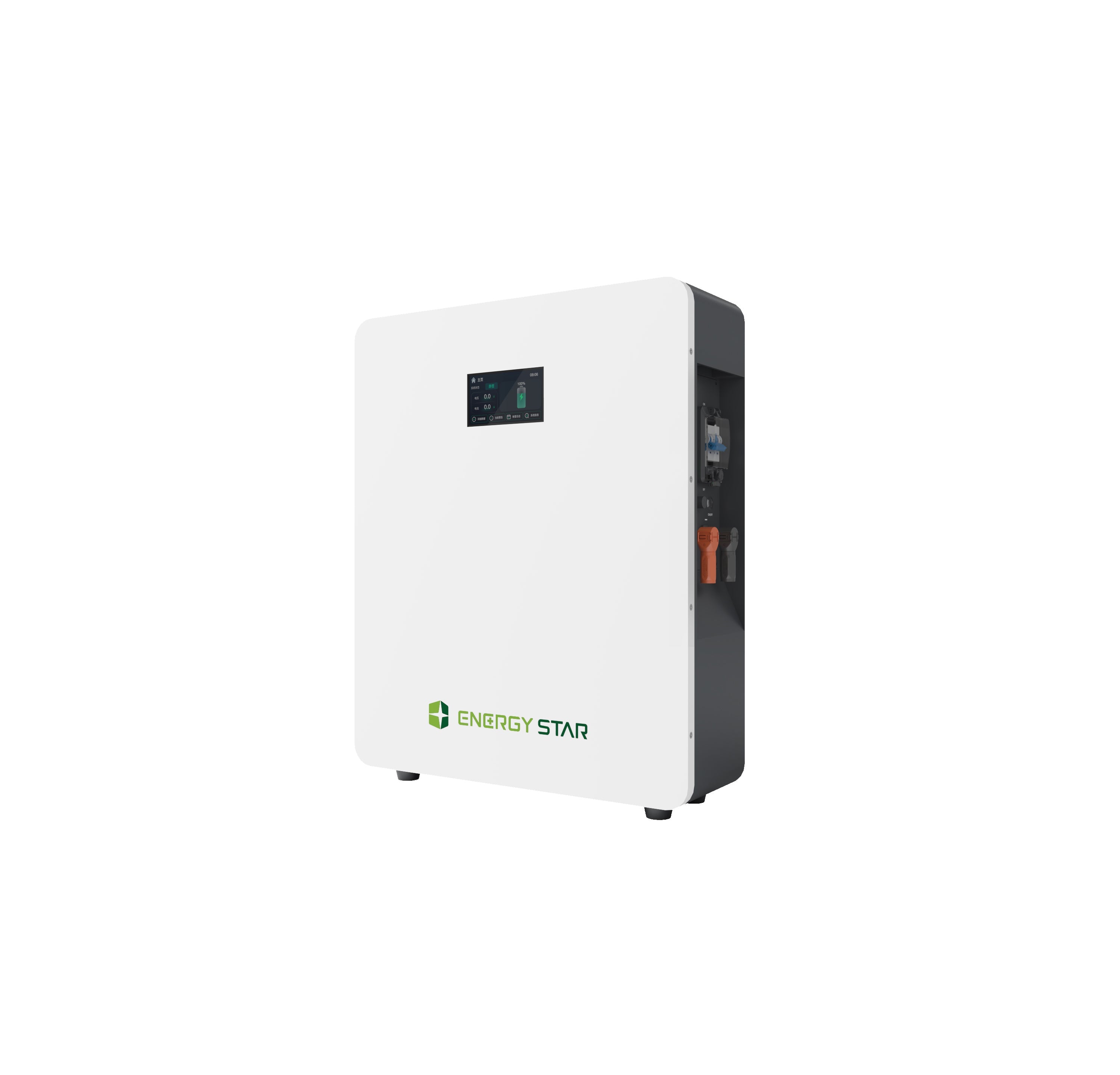

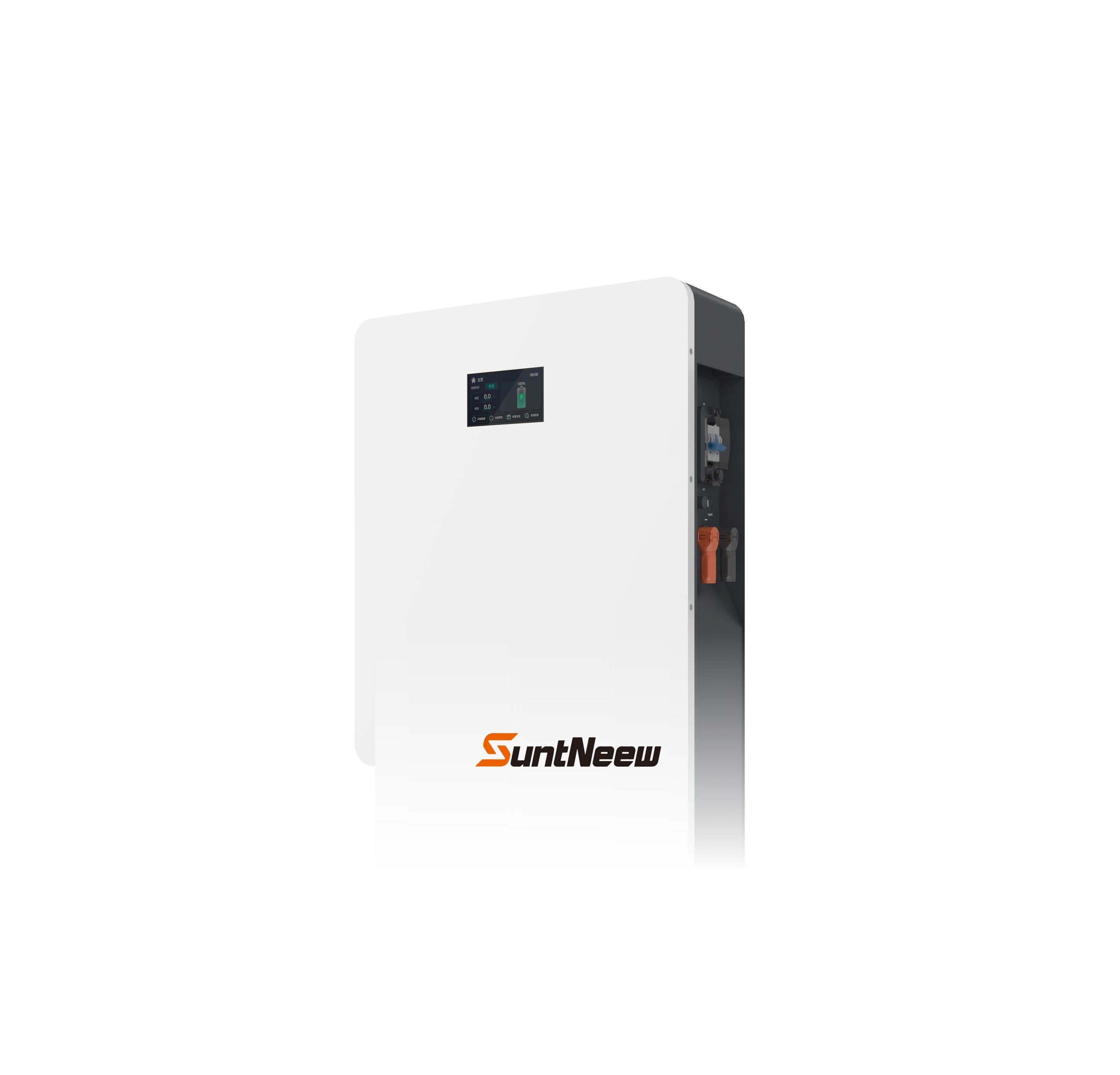

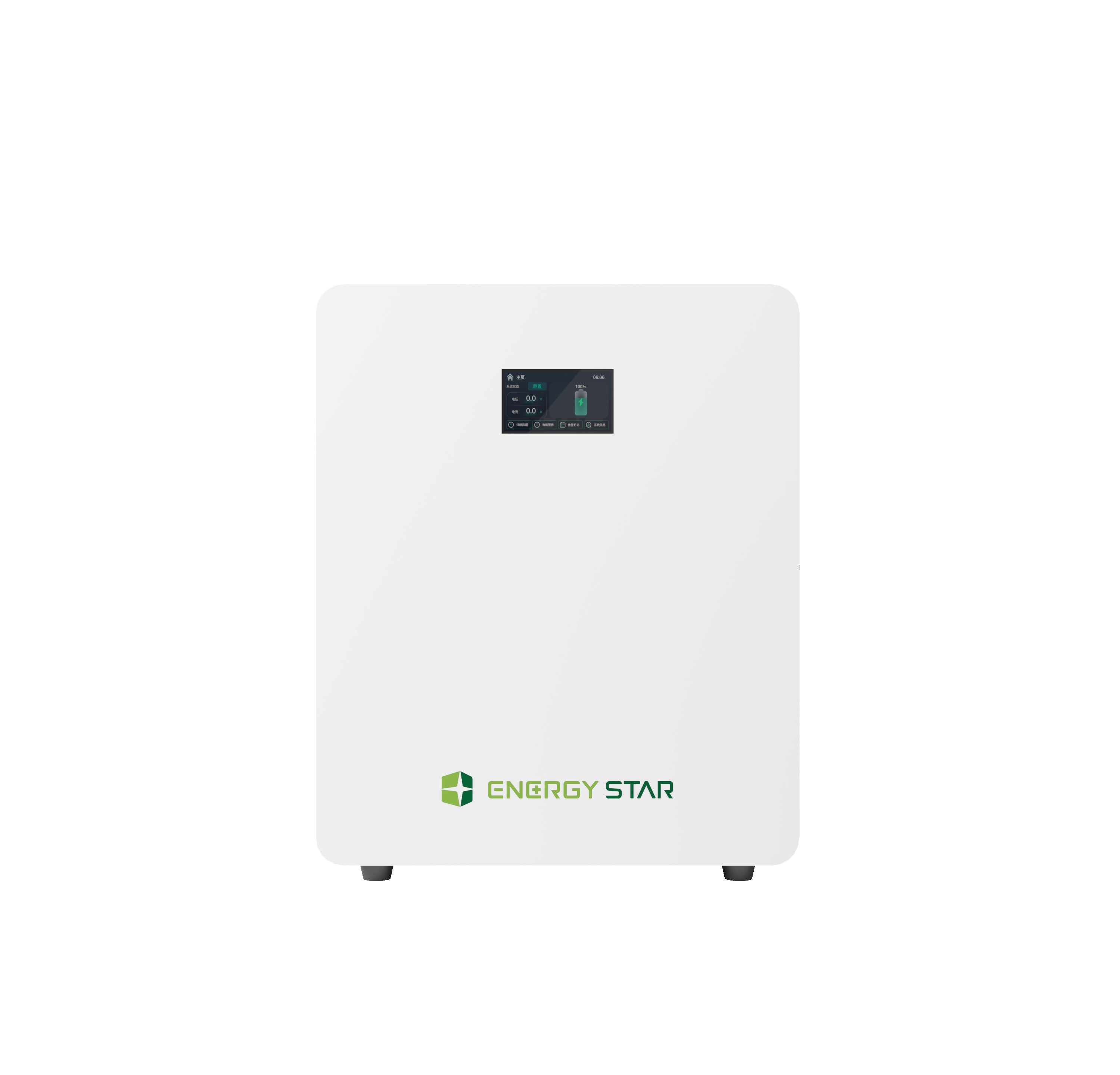

Product at a glance
A clean enclosure designed around a compact energy footprint
Use the dimensions and weight in Specifications to confirm the physical fit. This view makes the product scale and front layout easy to understand at a glance.

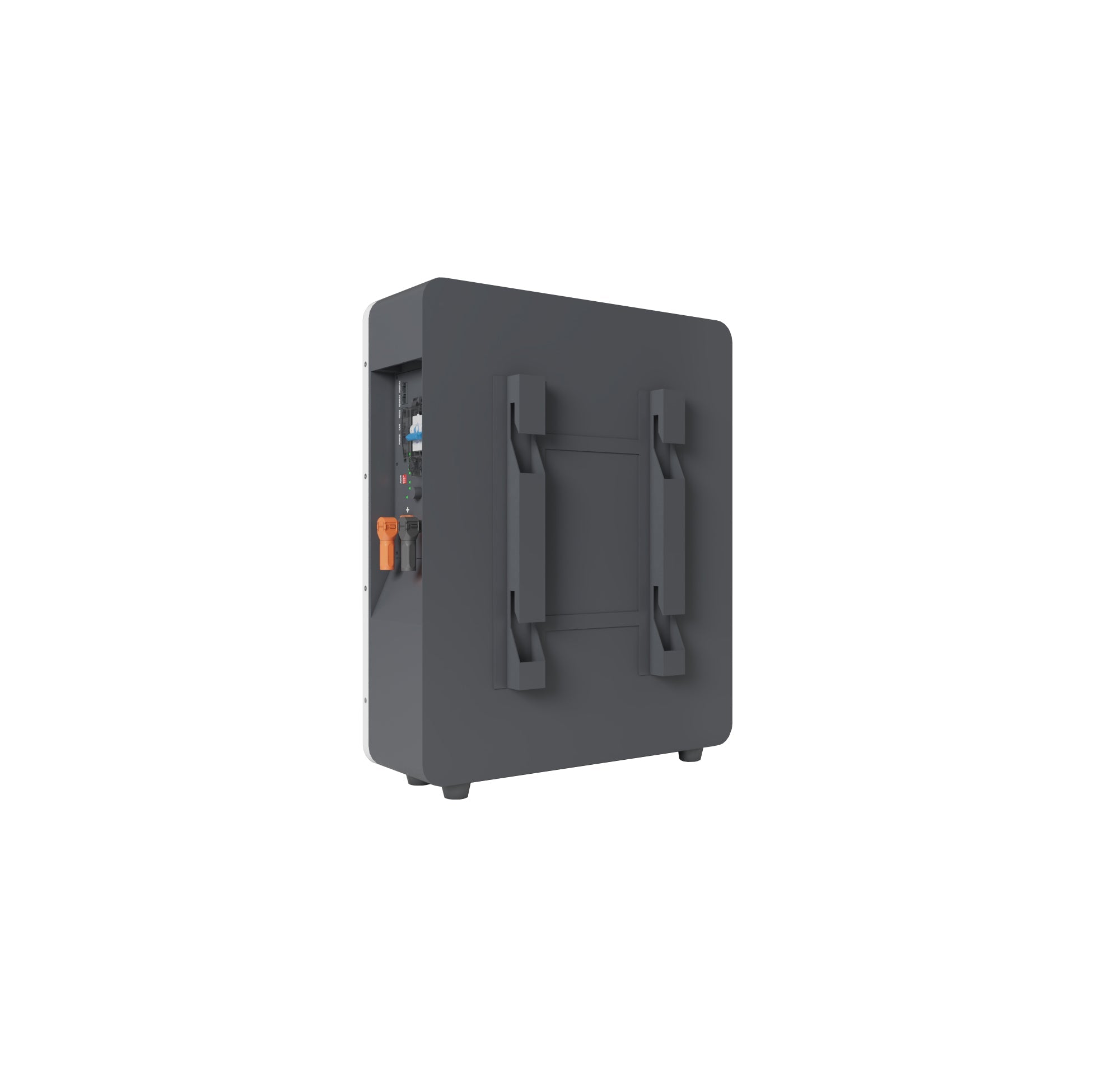

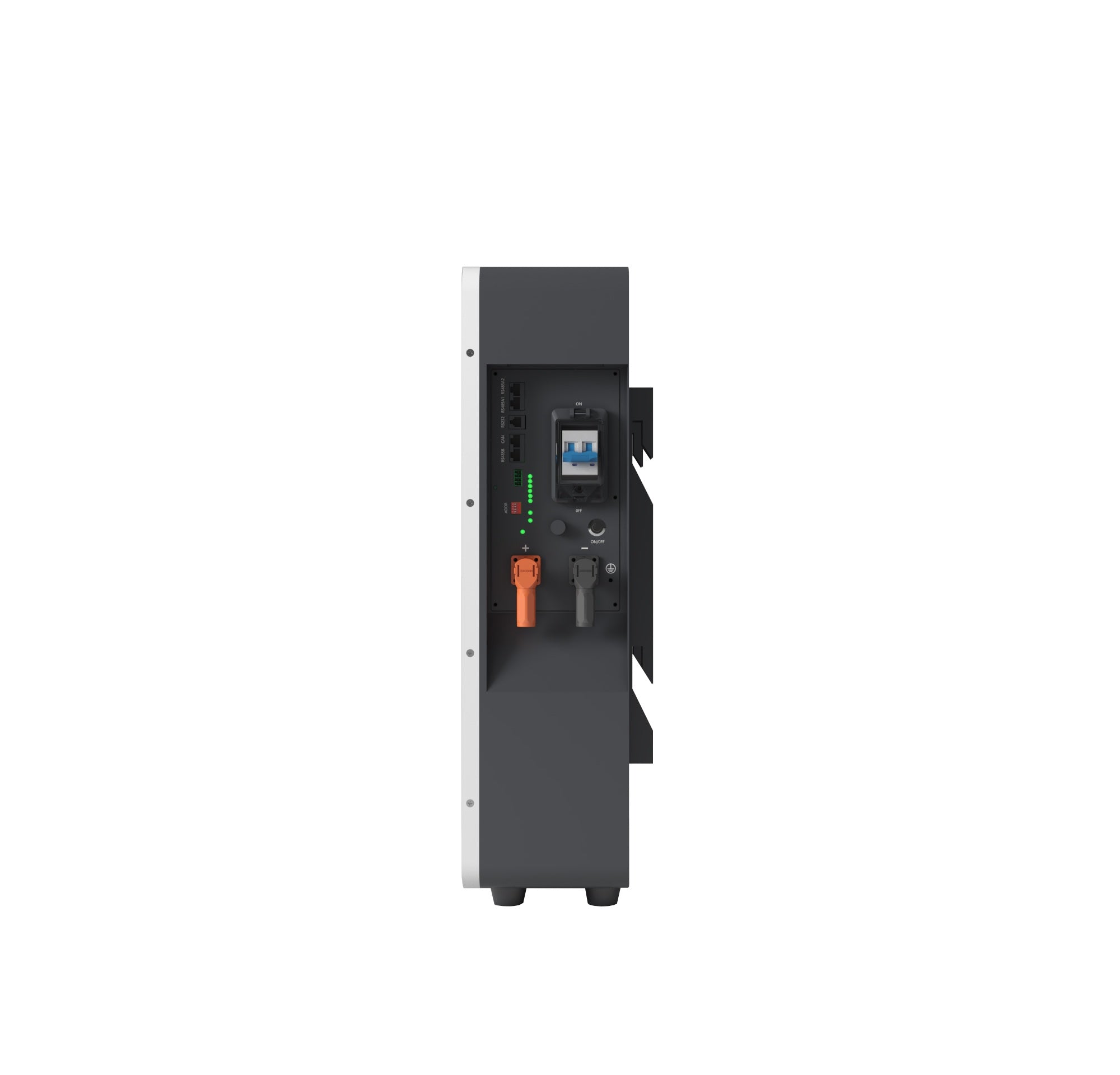

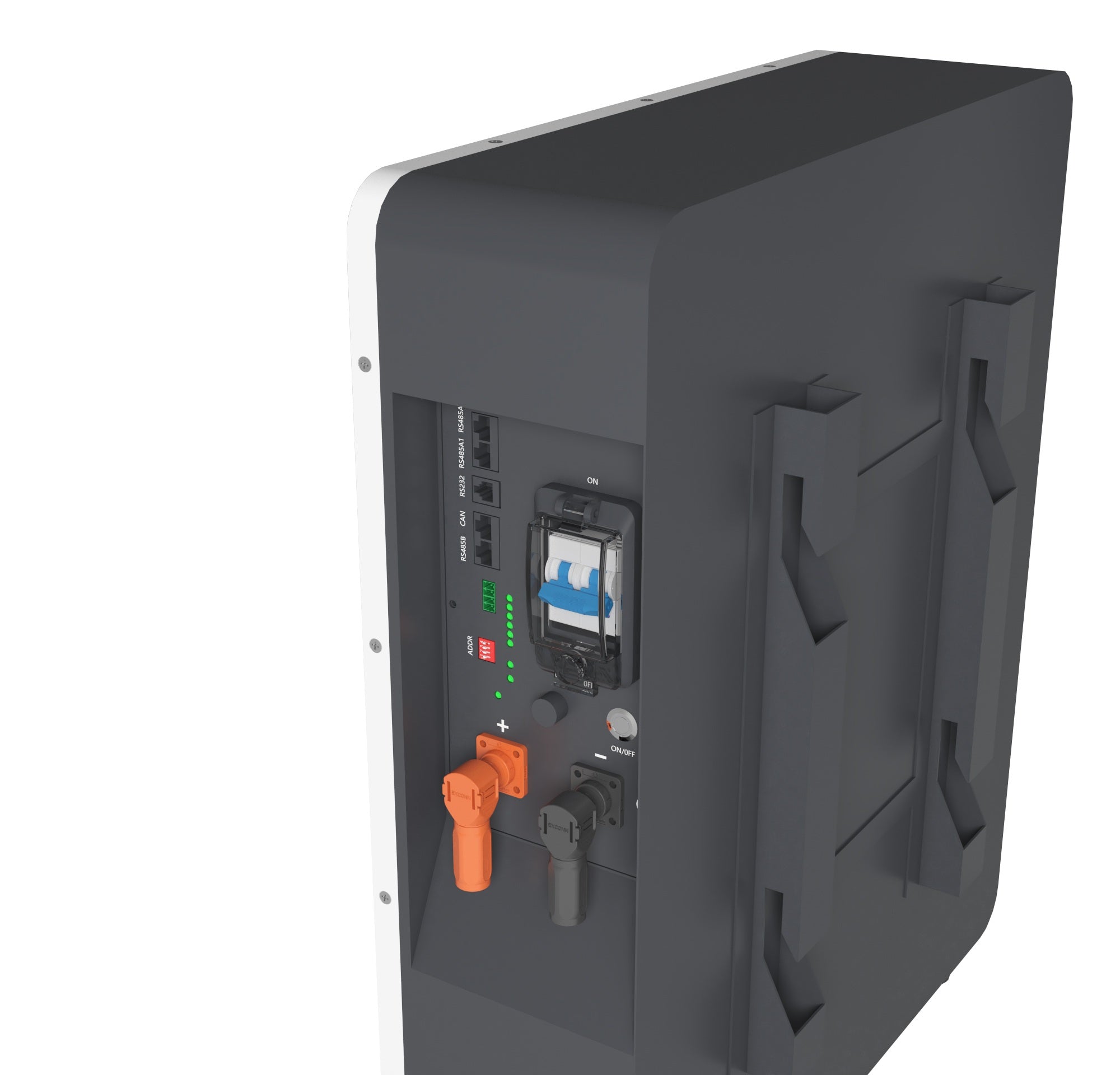

Installation-aware design
Review mounting and connection details before the install
Use the rear hardware and connection layout to plan around the inverter, protection design, cable route and installer requirements.
System fit
Plan the battery around the complete system
WL5A supports CAN, RS485, Wi-Fi and Bluetooth communication and up to nine connected sets. Review the inverter protocol, protection design and installation plan before installation.
Configuration data

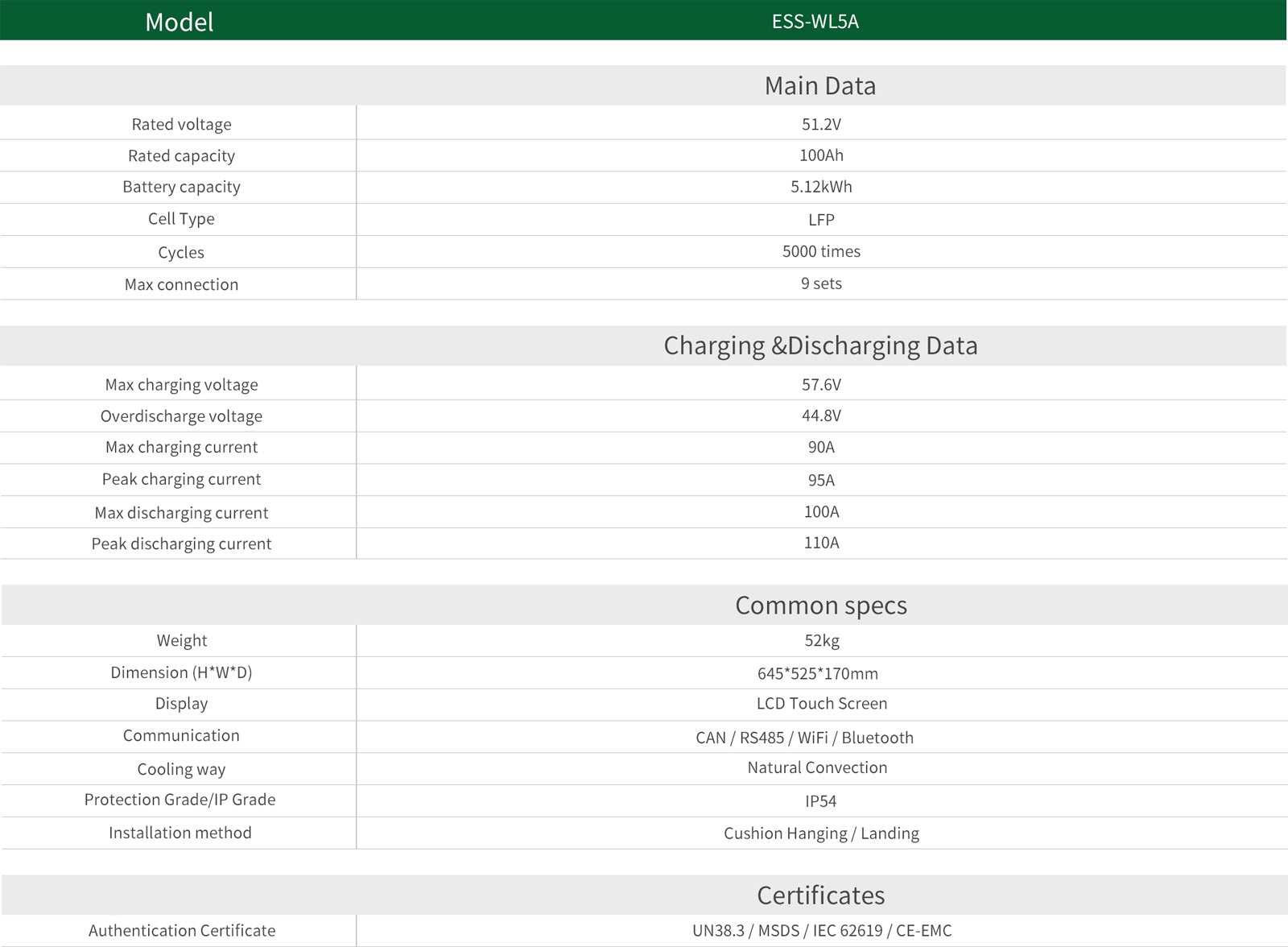

WL5A technical specifications
The four decision-making numbers stay visible above. Open a category only when you need deeper electrical or installation detail.
Capacity & electrical limits View details
- Cell chemistry
- LFP
- Rated voltage
- 51.2V
- Rated capacity
- 100Ah / 5.12kWh
- Max charging voltage
- 57.6V
- Overdischarge voltage
- 44.8V
- Max / peak charging current
- 90A / 95A
- Max / peak discharging current
- 100A / 110A
- Cycle life
- 5,000 cycles
Connectivity & expansion View details
- Max connection
- 9 sets
- Communication
- CAN / RS485 / Wi-Fi / Bluetooth
Installation & enclosure View details
- Weight
- 52kg
- Dimensions (H x W x D)
- 645 x 525 x 170mm
- Installation
- Wall mounting / floor standing
- Enclosure rating
- IP54
Purchase notes
Before installation
- Selected WL5A battery
- Review the inverter communication and electrical specifications before installation
- Confirm the delivery destination and any local receiving requirements
- Use a qualified installer and follow local electrical requirements
SuntNeew documentation
Manuals & Documents
User Manuals & Product Sheets
WL5A planning
Frequently asked questions
Can multiple WL5A batteries be connected?
WL5A supports up to nine connected sets. The final parallel configuration depends on inverter limits, wiring, protection devices and the installer's design.
Can I buy WL5A online?
Yes. Choose the quantity, then use Add to cart or Buy it now. Review inverter compatibility and local installation requirements before installation.
Does WL5A support wireless monitoring?
WL5A supports Wi-Fi and Bluetooth alongside CAN and RS485. Confirm app, firmware and inverter integration for the planned system.
Which documents are available?
The current product specification sheet is available on this page. Contact support only if you need destination-specific technical documentation.
