How to Jump Start a Car Safely: Step-by-Step SOP & Indicator Signals

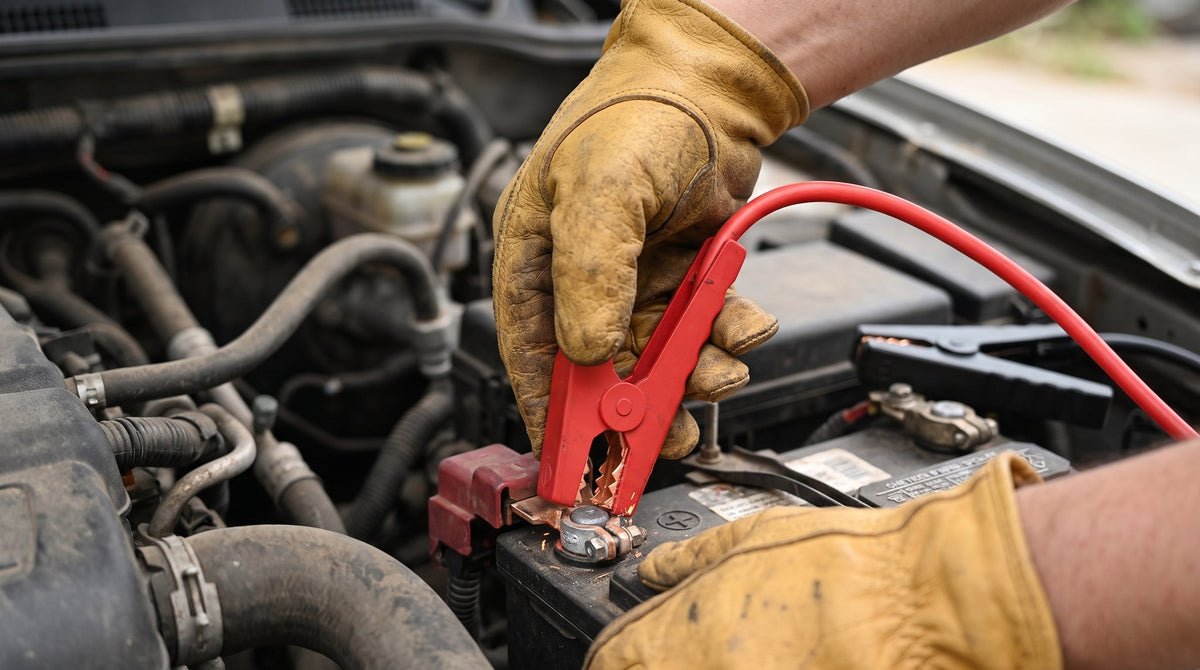

Connecting smart jumper clamps securely to automotive battery terminal

How to Jump Start a Car Safely: The Field Standard Operating Procedure (SOP)

  • Category: Use & Care
  • Topic: Emergency Procedures, Smart Clamp Diagnostics & Roadside Safety
  • Featured Model: SuntNeew A20 1500A Portable Lithium Jump Starter (Model: CY-A20)
  • Reading Time: 11 minutes
  • Author: SuntNeew Editorial
  • Status: Ready to Publish
  • Internal Mapping: JRN-C01

SuntNeew A20 Smart Clamp Connection and Solid Green Indicator Ready Light
Field execution of the connection phase: Hands in protective leather work gloves clamping the heavy-duty red jumper clip firmly to the automotive positive battery terminal, with the engine bay clearly illuminated.

Roadside Reality: Operating Under Stress

Jump starting a disabled vehicle is rarely an event that happens on a sunny afternoon in a climate-controlled garage. More often, it occurs under acute psychological and physical stress: on the shoulder of an unlit interstate highway with high-speed traffic passing feet away, in a desolate national forest campsite at dusk with temperatures dropping rapidly, or during a driving rainstorm in a crowded shopping center parking lot.

Under these stressful conditions, human error rates skyrocket. In a hurry to get the engine running, drivers frequently reverse polarity, drop live metal clamps onto alternator pulleys, or ignore subtle physical warning signs of a dangerous, ruptured battery.

Modern lithium jump starters—such as the SuntNeew A20 (Model: CY-A20)—have revolutionized roadside self-recovery by replacing cumbersome jumper cables and second-vehicle maneuvering with a compact, independent power source equipped with solid-state automated protection circuits.

However, intelligent hardware is only half the equation. You must master the physical Standard Operating Procedure (SOP).

This guide outlines a strict, numbered 6-phase protocol for diagnosing, connecting, starting, and disconnecting an automotive jump starter with complete safety. Follow these steps in exact sequence every single time.


Phase 0: The 60-Second "Look, Smell, Touch" Battery Safety Audit

Before you open your jump starter case or reach toward a battery with metal tools, you must spend 60 seconds conducting a vital physical inspection of the disabled vehicle's lead-acid starting battery.

Conventional automotive batteries contain concentrated sulfuric acid electrolyte and generate flammable hydrogen gas. Attempting to jump start a physically compromised battery can result in severe chemical burns, electrical fires, or a battery casing explosion.

```

┌────────────────────────────────────────────────────────────────────────┐

│ THE "LOOK, SMELL, TOUCH" PRE-JUMP SAFETY AUDIT │

├────────────────────────────────────────────────────────────────────────┤

│ 1. LOOK: Inspect the Battery Casing and Terminal Posts │

│ ├── Bulging / Swollen Plastic Sides: Severe internal short or │

│ │ electrolyte freeze. STOP IMMEDIATELY. DO NOT JUMP START. │

│ ├── Visible Cracks or Wet Acid Seepage: Casing compromised. STOP. │

│ └── Heavy Green/White Powder: Corrosion on posts. Must clean first. │

├────────────────────────────────────────────────────────────────────────┤

│ 2. SMELL: Check for Chemical Fumes │

│ ├── Rotten Egg / Pungent Sulfur Odor: Battery has severely boiled, │

│ │ releasing volatile hydrogen sulfide gas. Ventilate bay. STOP. │

├────────────────────────────────────────────────────────────────────────┤

│ 3. TOUCH: Check for Ambient Temperature Anomalies (Back of Gloved Hand)│

│ ├── Extremely Hot Casing: Thermal runaway in progress. STOP. │

│ └── Frozen Solid (Winter): Sub-zero ice inside plates. STOP. │

└────────────────────────────────────────────────────────────────────────┘

```

The Three Absolute Stop Conditions:

  1. Swollen or Bulged Casing: If the flat rectangular sides of the vehicle battery are noticeably bowed outward, the internal lead plates have buckled from extreme overheating, or the acid electrolyte has frozen into solid ice during sub-zero weather. Do not attempt to jump start. The battery must be replaced or thawed completely in a heated garage.
  2. Pungent Sulfur Smell: If opening the hood greets you with a sharp odor resembling rotten eggs, the battery has experienced severe overcharging and is actively outgassing explosive hydrogen gas. Allow the engine bay to ventilate for ten minutes. Do not create sparks.
  3. Visible Liquid Leakage: If acid has pooled on the battery tray or top cover, do not touch it with bare skin. Neutralize with baking soda and water before proceeding with battery replacement.

If the battery case is rectangular, clean, dry, and cool to the touch, you are clear to proceed to Phase 1.


Phase 1: Vehicle Preparation and Scene Safety

Take two minutes to stabilize the vehicle environment to eliminate electrical parasitic loads and mechanical hazards:

  1. Immobilize the Vehicle:
  • For Automatic Transmissions: Ensure the shifter is firmly locked in PARK (P).
  • For Manual Transmissions: Place the shifter in NEUTRAL (N) and firmly depress the clutch pedal during starting.
  • Engage the Emergency Handbrake: Pull the mechanical handbrake lever firmly or engage the electronic parking brake switch.
  1. Turn the Ignition Completely OFF:
  • Turn the key to the LOCK / OFF position and remove the physical key from the ignition barrel.
  • For Push-Button Start vehicles: Ensure the dashboard display is completely black and the vehicle is fully shut down.
  1. Kill All Auxiliary Electrical Accessories:
  • Switch OFF headlights and fog lights.
  • Turn OFF the cabin climate control fan / air conditioning.
  • Switch OFF heated seats, rear window defrosters, radio, and interior dome lights.
  • Unplug any phone chargers, dashcams, or GPS units from 12V cigarette lighter sockets.
  • Why this matters: When an automotive starter engages, it demands every possible Ampere. If your HVAC blower motor and heated seats are pulling 40 Amps simultaneously, that energy is stolen directly from the starter motor, significantly reducing your chances of starting.
  1. Don Personal Protective Equipment:
  • Slip on a pair of leather or nitrile-coated work gloves to protect your hands from battery acid residues and sharp metal engine brackets. Safety glasses are strongly recommended.

Phase 2: Connecting the Hardware in Exact Sequence

The order in which jumper clamps are connected is critical to eliminating accidental electrical short circuits against the vehicle chassis.

```

[ SUNTNEEW A20 Jump Starter ]

│

[ Blue EC5 Connector ] (Firmly seated into jump port)

│

[ Smart Protection Module ] ── LED Status Light Window

┌──────┴──────┐

(Red Cable) (Black Cable)

│ │

[ RED Clamp ] [ BLACK Clamp ]

│ │

▼ ▼

POSITIVE (+) NEGATIVE (-) or Unpainted Engine Ground

```

Step 1: Connect the Smart Clamp Cable to the A20

Take the blue polarized EC5 connector on the smart jumper cable assembly and insert it firmly into the jumping port on the side of the SuntNeew A20. Ensure the plug is seated completely flush into the socket. The LED indicator on the smart clamp housing will begin flashing green or alternating red/green, indicating that the intelligent safety module is in standby monitoring mode.

Step 2: Attach the RED (+) Clamp to the POSITIVE Terminal

Locate the vehicle battery's POSITIVE terminal:

  • It is marked with a PLUS sign (+) on the plastic battery casing.
  • It frequently features a red protective plastic flip-up cover.
  • The positive terminal post is physically slightly larger in diameter than the negative post.

Grip the RED clamp firmly, squeeze the handles to spread the jaws, and clamp it directly onto the clean metal surface of the positive terminal post. Rock the clamp back and forth slightly so the aggressive serrated copper teeth bite through surface oxidation, grease, or dirt.

Step 3: Attach the BLACK (-) Clamp to Ground (or Negative Post)

  • The Preferred Engineering Method (Chassis / Engine Ground): Attach the BLACK clamp to a solid, unpainted metal bolt, bracket, or engine lifting eye on the engine block, at least 12 inches away from the battery. This ensures that in the unlikely event a tiny spark occurs, it takes place far away from any hydrogen gas escaping the battery vents.
  • The Alternate Direct Method: If your modern vehicle engine bay is entirely covered in plastic cladding and no bare metal ground point is accessible, clamp the BLACK clip directly onto the vehicle battery’s NEGATIVE terminal post (-).

SuntNeew A20 Flashlight Lens and Multi-Port Interface Overview
Extreme macro of the SuntNeew A20 smart protection module, showing the solid green LED indicator illuminated, confirming zero fault conditions and full ignition readiness.

Phase 3: Decoding Smart Clamp LED & Audio Indicator Signals

Once both clamps are secured, the micro-controller inside the SuntNeew Smart Clamp Module evaluates the circuit in less than 50 milliseconds.

Look directly at the LED status indicator on the smart clamp box before touching the vehicle ignition:

```

┌────────────────────────────────────────────────────────────────────────┐

│ SUNTNEEW SMART CLAMP DIAGNOSTIC MATRIX │

├────────────────────────────────────────────────────────────────────────┤

│ LED Indicator State │ Audio Buzzer │ System Status & Action │

├──────────────────────────┼──────────────┼──────────────────────────────┤

│ 1. Solid Green Constant │ None (Silent)│ SAFE TO START. Ready to crank│

├──────────────────────────┼──────────────┼──────────────────────────────┤

│ 2. Solid Red Constant │ Continuous │ REVERSE POLARITY. Clamps are │

│ │ High-Pitch │ backwards. Swap immediately. │

├──────────────────────────┼──────────────┼──────────────────────────────┤

│ 3. Flashing Green Light │ None (Silent)│ LOW VOLTAGE (<2.0V). Battery │

│ │ │ flat. Press BOOST for 3 sec. │

├──────────────────────────┼──────────────┼──────────────────────────────┤

│ 4. Flashing Red Light │ Intermittent │ OVER-TEMPERATURE. Jump │

│ │ Beeping │ starter hot. Allow 3 min cool│

├──────────────────────────┼──────────────┼──────────────────────────────┤

│ 5. LED Completely Dark │ None │ NO CONTINUITY. Check EC5 plug│

│ │ │ or clean corroded posts. │

└────────────────────────────────────────────────────────────────────────┘

```

Detailed Signal Protocols:

1. Solid Green LED (The All-Clear Signal)

  • Meaning: The smart module has confirmed correct polarity, measured a resting voltage between 2.0\text{V} and 12.6\text{V}, and closed its internal heavy-duty solid-state relay.
  • Action: Full cranking power is now energized. Walk directly to the driver's seat and start the car.

2. Solid Red LED + Piercing Audible Buzzer (Reverse Polarity Alert)

  • Meaning: You have accidentally clamped the RED clamp to negative, or the BLACK clamp to positive. The smart module's reverse-polarity diodes have locked the circuit open, preventing a catastrophic electrical short.
  • Action: Do not panic. The A20 has completely protected both the car and itself. Disconnect the black clamp first, then the red clamp, and reconnect them to the correct terminals.

3. Flashing Green LED (The Deep-Discharge Scenario)

  • Meaning: The vehicle battery is so severely depleted that its resting voltage has dropped below 2.0 Volts. The smart module's automatic sensor cannot detect enough voltage to confirm polarity automatically.
  • Action: Double-check that your red clamp is on positive and your black clamp is on negative. Once 100% verified, locate the small BOOST button on the side of the smart clamp module. Press and hold the BOOST button for 3 seconds using a pen tip or your fingernail. The relay will physically click, the LED will turn Solid Green, and full 12V power will be forced into the circuit. You have 30 seconds to crank the engine before the boost mode times out.

4. Flashing Red LED + Beep (Over-Temperature Protection)

  • Meaning: You have attempted multiple rapid starts and the internal lithium cells or clamp relay have reached their thermal ceiling (+60^\circ\text{C} / 140^\circ\text{F}).
  • Action: Disconnect the unit from the battery and set it in the shade for 3 to 5 minutes to cool down before attempting another crank.

Phase 4: Executing the Ignition Crank

With the smart clamp displaying a confident Solid Green LED, execute the starting sequence:

  1. Get Into the Driver's Seat: Close the vehicle door behind you.
  2. Engage the Starter:
  • For Key Ignitions: Turn the key to the START position and hold it firmly for no more than 3 to 5 seconds.
  • For Push-Button Ignitions: Depress the brake pedal firmly and press the START button once.
  1. The Engine Fires: The engine will crank vigorously and catch, revving up to its normal fast-idle speed (typically 1,100 to 1,500 RPM).
  2. If the Engine Does Not Start (The 60-Second Cooling Rule):
  • If the engine cranks for 5 seconds without catching, release the key immediately.
  • Do not continuously crank the starter motor. Continuous cranking overheats starter motor armature windings and rapidly drains the jump starter cells.
  • Wait a full 60 seconds between attempts. This rest period allows the lithium chemistry in the A20 to recover its electrochemical equilibrium and lets the starter motor cool down.
  • After 60 seconds, verify the Solid Green LED on the smart clamp and attempt a second 3-to-5 second crank.
  • Limit yourself to a maximum of 3 attempts. If the engine cranks rapidly but refuses to catch after three tries, your problem is not battery power—it is a lack of fuel delivery (empty tank, failed fuel pump) or an ignition system failure (flooded spark plugs, crank position sensor).

Phase 5: The Disconnection Protocol

Once the engine is running smoothly, you must disconnect the jump starter promptly to prevent high alternator charging voltages from flowing back into the unit.

CRITICAL RULE: LEAVE THE ENGINE RUNNING. If you turn the engine off now, the dead vehicle battery will not have absorbed sufficient charge, and you will have to repeat the entire process.

Execute disconnection in the exact reverse order of connection:

  1. Remove the BLACK (-) Clamp First: Carefully unclamp the negative clamp from the chassis ground or negative battery post, and step back.
  2. Remove the RED (+) Clamp Second: Unclamp the positive clamp from the battery post. Be careful not to let the red and black clamp jaws touch each other (although the A20 has short-circuit protection, maintaining good habits is essential).
  3. Unplug the Blue EC5 Connector: Pull the smart clamp cable out of the A20 jump starter housing.
  4. Pack and Secure: Stow the A20 and smart clamp assembly back into its protective zippered carrying case.

Phase 6: Post-Start Alternator Health Diagnostic

Just because the vehicle started does not mean your journey is safe to resume. A vehicle battery dies for one of two distinct reasons:

  1. A Parasitic Drain / User Mistake: You left a dome light on, but the vehicle's alternator is perfectly healthy.
  2. A Blown Alternator: The mechanical alternator has stopped generating electricity, meaning the vehicle was running entirely off the battery until it drained flat.

If your alternator is dead, your car will run for approximately 10 to 20 minutes on the electrical energy stored in the ignition coils and ECU, and then die completely while driving in traffic—a dangerous situation.

How to Test Your Alternator in the Field:

If you carry a digital multimeter in your vehicle toolkit:

  1. Leave the vehicle engine idling in PARK.
  2. Set the multimeter dial to DC Volts (20V scale).
  3. Touch the red probe to the positive battery post, and the black probe to the negative post.
  4. Read the Idle Voltage:
  • 13.8V to 14.6V: HEALTHY ALTERNATOR. The alternator is actively charging the battery. You can safely drive the vehicle home or to an auto parts store. Drive for at least 30 to 45 minutes on the highway to restore charge.
  • 12.0V to 12.6V (or dropping): FAILED ALTERNATOR. The alternator is not producing power. Do not attempt to drive on the highway. Drive immediately to the nearest repair facility or call for a tow truck while the vehicle is in a safe location.

Roadside Troubleshooting Decision Tree

```

Engine Fails to Start with SuntNeew A20

│

├── Rapid Metallic Clicking Sound

│ └── Cause: Poor clamp contact. Remove clamps, use wire brush or pocket knife

│ to scrape lead oxidation off battery posts, and re-clamp firmly.

│

├── Zero Sound / Complete Silence

│ ├── Check Smart Clamp LED.

│ ├── If Flashing Green: Battery voltage is below 2.0V. Press and hold BOOST button

│ │ for 3 seconds until LED turns Solid Green, then crank.

│ └── If Solid Red: Clamps are reversed. Swap positive and negative.

│

└── Engine Cranks Fast but Won't Catch (Spins freely without starting)

└── Cause: Battery and starter are 100% functional. Vehicle is suffering from:

  • Out of fuel or failed fuel pump relay.
  • Anti-theft immobilizer lockout (key transponder unrecognized).
  • Flooded cylinders (hold accelerator to floor while cranking to clear fuel).

```


Frequently Asked Questions (FAQ)

Q1: Can I jump start a hybrid vehicle (like a Toyota Prius) with the A20?

Yes. Hybrid vehicles utilize a conventional 12V auxiliary battery (usually located in the trunk or under the rear seat) to boot up the hybrid computer modules and close the high-voltage traction relay. If the 12V battery dies, the entire hybrid system remains offline. Connect the A20 to the 12V jump-starting terminals in the under-hood fuse box or trunk battery; once the computer boots and the dashboard displays "READY", the high-voltage hybrid battery starts the engine automatically.

Q2: Why does my A20 battery percentage drop slightly after a successful jump start?

A single 3-second jump start on a 4-cylinder or 6-cylinder engine consumes approximately 3% to 6% of the A20’s internal capacity (approx. 250–500 mAh). On large V8 engines or in sub-zero weather, a heavy crank may consume 8% to 12%. This means a fully charged A20 can reliably perform multiple rescues on a single charge.

Q3: What should I do if the battery terminals are covered in thick blue/white fuzz?

That powder is toxic lead sulfate and copper sulfate corrosion. Do not breathe it in or get it on your clothing. Use an old rag, a wire terminal brush, or a stiff pocket comb to scrape the corrosion off the metal posts until bare, shiny gray lead or gold brass is exposed. Clamping onto corrosion creates massive electrical resistance, preventing current from reaching the starter.

Q4: Can I recharge the A20 using my car's USB port while driving?

Yes. Once your car is running, plug the included USB-C charging cable into a 12V USB car charger and connect it to the A20’s USB-C input port. It will recharge while you drive, ensuring it is 100% prepared for your next stop.

Q5: Can I use the A20 in heavy rain or snowfall?

The A20 casing features water-resistant seals and port covers, but electrical terminals should never be submerged in water. Under heavy rain, tilt your vehicle hood up, keep the A20 body shielded under the hood lip or on the dry cowl panel, and ensure water is not actively streaming across the jumper clamp jaws.

Q6: Can the smart clamps cause a spark if they accidentally touch?

No. Thanks to the internal reverse-polarity and short-circuit protection relays, the clamp jaws are electrically dead until they detect a valid closed circuit with a 12V battery. If you accidentally tap the red and black clamps together in standby mode, zero sparks will occur.


Quick-Reference Glove Box SOP Card

  1. Inspect: Check battery for swelling, acid leaks, or rotten egg sulfur odors.
  2. Prep: Car in PARK / NEUTRAL, emergency brake SET, lights & AC turned OFF.
  3. Plug: Insert blue EC5 plug firmly into the A20 jump starter.
  4. Clamp RED: Attach RED clamp to POSITIVE (+) battery post.
  5. Clamp BLACK: Attach BLACK clamp to engine block metal or NEGATIVE (-) post.
  6. Check LED: Confirm SOLID GREEN LED. (If flashing green, hold BOOST for 3s).
  7. Crank: Turn ignition for 3 to 5 seconds. Engine starts!
  8. Disconnect: Remove BLACK clamp first, then RED clamp, then unplug EC5 cable. Leave engine running.
