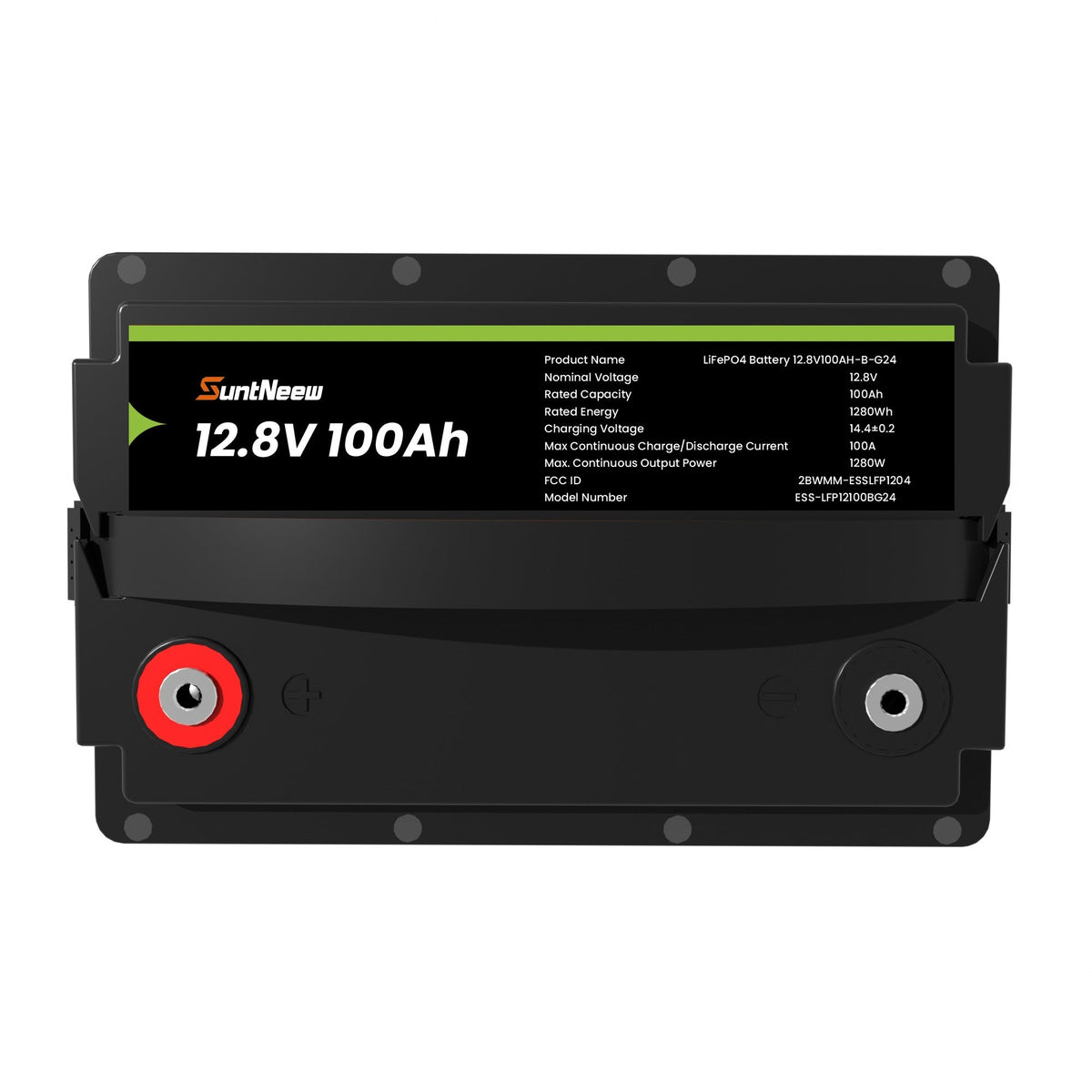

12.8V 100Ah · 1,280Wh · Bluetooth 5.0
A compact Group 24 LiFePO4 deep-cycle battery for RV auxiliary power. Check the case dimensions, terminal clearance and charging setup before installation.
Multi-pack quantity
Podatki i koszty wysyłki obliczane przy realizacji zakupu
GROUP 24 FEATURES
First confirm the physical fit. Then use G24's 1,280Wh reserve, manageable listed weight and Bluetooth visibility to build a practical RV auxiliary-power system around the space you have.
GROUP 24, MADE FOR THE BAY YOU HAVE
G24 combines 100Ah capacity and 100A continuous current in a 260 × 170 × 212mm case—an RV auxiliary-power upgrade for tighter compartments, not an engine-starting battery.
CHOOSE BY FIT FIRST
G24 and G31 both provide 12.8V 100Ah rated energy. G24 is 79mm shorter, 15mm narrower and 6mm lower before terminal clearance, so measure the actual bay rather than relying on the group name alone.
EASIER TO HANDLE, STILL PLAN CAREFULLY
The listed weight reduces the handling burden, while the important work remains the same: isolate power, confirm terminal clearance, use compatible charging settings, then secure the battery and its cabling correctly.
BLUETOOTH 5.0 MONITORING
Use the supported mobile app to review state of charge, voltage, current, power, temperature and cycle information before changing a load, connecting a charger or packing up camp.
PROTECTION INSIDE THE BATTERY, DISCIPLINE THROUGHOUT THE INSTALL
Battery protection is part of the product; correctly sized fuses, conductors, a disconnect and insulated terminals are still part of the RV system around it. Keep every charging source on a compatible LiFePO4 profile.
LOW-TEMPERATURE CHARGING PROTECTION
Low-temperature charging protection stops charging below 0°C battery temperature and resumes above 5°C. This does not turn an exposed battery bay into a weatherproof installation—follow the manual for placement and operating limits.
READY TO PLAN, NOT READY TO RUSH
The standard package includes the battery, terminal screws, insulating caps, washers and English manual. Select external fuses, conductors, disconnects and charging equipment for the actual RV system.
PRODUCT DATA
Review fit, capacity, charging and operating values in one place. The product manual remains the source for the full operating sequence, safety limits and installation requirements.
PACKAGE CONTENTS
PRODUCT DOCUMENT CENTER
GROUP 24 RV BATTERY
Product support, documents and installation checks for your 12.8V 100Ah Group 24 battery.
Use only documents that match the product label. Public technical documents are available from the product page or technology center where shown.
SUPPORT & CERTIFICATES
Warranty coverage and 24/7 support are available across the RV range. The downloadable files below identify their exact G24, RV-series or confirmed G24/G31 shared-design scope.
24/7 SUPPORT
Contact SuntNeew support 24/7 for product setup, charging, Bluetooth, installation and after-sales questions. Keep the order details, model number and clear photos available to help the team handle the request efficiently.
5-YEAR LIMITED WARRANTY
The 5-Year Limited Warranty covers eligible product defects under the model-specific warranty terms. It does not guarantee ten years of product life or cover misuse, modification or operation outside the stated limits.
SUPPORTING DOCUMENTS
The FCC SDoC and EMC certificate list G24. The RoHS report covers the RV battery series.
GROUP 24 BUYING QUESTIONS
Only if the planned battery bay, hold-down, terminal orientation and cable route suit the smaller 260 × 170 × 212mm G24 enclosure. Both batteries are 12.8V 100Ah, but their physical cases are different; measure the actual installation before ordering.
No. The 260 × 170 × 212mm dimensions exclude the terminals. Allow additional clearance for terminal hardware, cable lugs, covers and bend radius.
The current product data lists 100A as the maximum continuous charge and discharge rating. The practical system limit also depends on conductors, protection devices, connections, inverter and connected equipment.
No. This is a deep-cycle auxiliary battery and is not intended to start a vehicle, boat engine or other device. Do not use it as a starting battery.
Only if the charger documentation explicitly supports the required LiFePO4 voltage profile and current limits. Do not assume every lead-acid charger is compatible.
Low-temperature charging protection stops battery charging below 0°C and resumes above 5°C battery temperature. This protection does not change the specified charging, discharge, storage or installation limits in the manual.
The G24 cycle-life reference is at least 5,000 cycles at 80% depth of discharge, from the approved test condition of 0.5C charge and discharge to 80% end-of-life. Actual cycle life varies with depth of discharge, charge and discharge rate, temperature and operating conditions.
The FCC SDoC and EMC certificate identify G24 among their listed models, and the RoHS report covers the RV battery series.
24/7 Support covers product setup, charging, Bluetooth, installation and after-sales questions. The 5-Year Limited Warranty covers eligible product defects under the model-specific warranty terms.
