The Winter Storage Paradox: Why Batteries Die in Driveways

For outdoor adventurers, seasonal transitions mark a shift in how equipment is handled. As autumn foliage gives way to sub-freezing winter storms, thousands of camper vans, travel trailers, overland rigs, and boats are winterized, covered, and parked in driveways, storage yards, or barns for three to six months of downtime.

Yet when spring arrives and owners eagerly pack their bags for the first trip of the new season, a distressingly common discovery awaits: the batteries are completely, irreversibly dead.

A deep-cycle battery that powered a refrigerator flawlessly all through July now reads zero Volts and refuses to accept a charge from shore power. A portable jump starter that sat quietly in the glove box for six months shows a blank display when pressed.

The typical reaction is to assume that cold weather destroyed the battery, or that the battery was defective. In reality, cold weather rarely kills a properly prepared lithium battery.

The true culprits behind off-season battery failure are:

1. Silent Parasitic Drains: Microscopic electrical draws from onboard vehicle electronics that continuously siphon power until the battery is driven into catastrophic deep discharge.
2. Improper State of Charge (SoC) Storage: Storing lithium cells at 100% full charge or 0% empty charge, accelerating irreversible chemical calendar aging.
3. Sub-Freezing Charging Errors: Attempting to charge cold lithium cells below 32^\circ\text{F} (0^\circ\text{C}), causing permanent lithium metal plating.

In this comprehensive maintenance guide, we examine the electrochemical aging mechanisms of lithium iron phosphate (LiFePO4) and lithium-ion cells, establish the mathematics of parasitic drains, outline exact temperature boundaries, and deliver a step-by-step seasonal winterization and spring awakening protocol.

---

Electrochemical Aging: Why 50% SoC is the Golden Storage Rule

To understand how to store a lithium battery properly, you must dispel a persistent myth inherited from the lead-acid era.

With traditional flooded or AGM lead-acid batteries, the universal rule was: "Always keep it plugged into a trickle charger at 100% full charge." Lead-acid batteries suffer rapid, destructive sulfation if left even partially discharged.

Lithium batteries (both LiFePO4 in our G31 and Lithium-Ion in our A20) behave in the exact opposite manner.

```

┌────────────────────────────────────────────────────────────────────────┐

│ STATE OF CHARGE (SoC) STORAGE EFFECTS ON LITHIUM CELLS │

├────────────────────────────────────────────────────────────────────────┤

│ 100% State of Charge (Fully Saturated at 14.4V - 14.6V): │

│ ├── Internal Mechanical Stress: Cathode crystal lattice fully dilated. │

│ ├── Electrolyte Oxidation: High voltage accelerates oxidation of liquid│

│ │ electrolyte, thickening the Solid Electrolyte Interphase (SEI). │

│ └── Capacity Loss: Accelerated permanent calendar capacity degradation.│

├────────────────────────────────────────────────────────────────────────┤

│ 40% to 60% State of Charge (The Golden Zone: ~13.20V - 13.25V): │

│ ├── Minimum Chemical Potential: Electrodes in relaxed, balanced state. │

│ ├── Low Parasitic Side Reactions: Extremely stable internal chemistry. │

│ └── Shelf Life: Safely stored for 6 to 12 months with minimal aging. │

├────────────────────────────────────────────────────────────────────────┤

│ 0% State of Charge (Severely Depleted below 10.0V): │

│ ├── Copper Shunting: Anode copper current collectors dissolve into │

│ │ electrolyte, forming microscopic copper dendrites. │

│ └── Permanent Failure: Recharging causes internal short circuits. │

└────────────────────────────────────────────────────────────────────────┘

```

1. The Hazard of Storing at 100% Full Charge

When a lithium iron phosphate cell is fully charged to 100% State of Charge (3.65\text{V} per cell, or 14.6\text{V} across a 4-cell bank), nearly all lithium ions are extracted from the iron phosphate cathode and packed tightly into the carbon graphite anode.

This state represents maximum chemical potential and mechanical stress. Storing a battery at 100% charge—especially in warm spring or late summer environments—accelerates parasitic chemical side reactions, oxidizes the liquid electrolyte, and permanently reduces total cycle lifespan.

2. The Danger of Storing at 0% Depleted Charge

Conversely, storing a battery near 0% charge is equally hazardous. Every battery experiences a tiny internal self-discharge rate (typically 1% to 3% per month).

If a battery is put into storage at 5% capacity, that tiny self-discharge will gradually pull the cell voltage below 2.0\text{V} per cell (8.0\text{V} for the battery). When cell voltage collapses to near zero, the copper foil current collectors inside the anode begin to chemically dissolve into the electrolyte. When you later attempt to recharge the battery, that dissolved copper plates out in microscopic conductive needles (dendrites) that puncture the polymer separator, creating a permanent internal short circuit.

3. The Golden Storage Zone: 50% SoC

The ideal State of Charge for storing both the SuntNeew G31 auxiliary battery and the SuntNeew A20 jump starter is between 40% and 60% SoC:

• For the SuntNeew G31 (12.8V LiFePO4): A resting open-circuit voltage of approximately 13.20\text{V} \text{ to } 13.25\text{V} (or roughly 50% capacity on a coulomb-counting shunt monitor).
• For the SuntNeew A20 Jump Starter: 2 to 3 bars out of 4 (50% to 75%) on its backlit digital display.

At 50% SoC, the lithium ions are distributed evenly between the cathode and anode, mechanical crystal stress is minimized, and the battery possesses ample reserve to absorb months of natural self-discharge without approaching critical low-voltage thresholds.

---

The Phantom Threat: Auditing Vehicle Parasitic Drains

If lithium self-discharge is so low (less than 2% to 3% per month), why do so many RV and boat batteries die within 30 days of storage?

The answer is almost always parasitic loads (phantom drains).

In a modern recreational vehicle, camper van, or overland build, turning off the master light switches and unplugging USB cables does not truly turn off the electrical system. Dozens of small electronic devices remain connected to the 12V DC bus, continuously sipping tiny amounts of current 24 hours a day, 7 days a week:

```

┌────────────────────────────────────────────────────────────────────────┐

│ COMMON RV OFF-GRID PARASITIC PHANTOM LOADS │

├────────────────────────────────────────────────────────────────────────┤

│ Appliance / Subsystem │ Continuous Draw (Amps) │ Daily Drain│

├──────────────────────────────────┼────────────────────────┼────────────┤

│ LPG Propane Gas & CO Detectors │ 0.040A - 0.080A │ 1.0 - 1.9Ah│

│ Stereo Memory Clock & Presets │ 0.015A - 0.030A │ 0.4 - 0.7Ah│

│ Digital Inverter Standby Circuit │ 0.030A - 0.070A │ 0.7 - 1.7Ah│

│ Tank Level & Water Heater Boards │ 0.010A - 0.025A │ 0.2 - 0.6Ah│

│ Telematics / GPS Tracking Device │ 0.020A - 0.050A │ 0.5 - 1.2Ah│

│ Refrigerator Climate Control PCB │ 0.010A - 0.030A │ 0.2 - 0.7Ah│

├──────────────────────────────────┼────────────────────────┼────────────┤

│ TOTAL COMBINED PHANTOM LOAD │ ~0.125 Amps (125 mA) │ ~3.0 Ah/day│

└──────────────────────────────────┘

```

The Devastating Math of a 125-Milliamp Drain

A parasitic current of 125 milliamps (0.125A) appears harmless. It is barely enough power to illuminate a miniature dashboard LED. But look at what happens over time:

\text{Daily Drain} = 0.125\text{ A} \times 24\text{ hours} = \mathbf{3.0\text{ Amp-Hours per day}}

\text{30-Day Drain} = 3.0\text{ Ah/day} \times 30\text{ days} = \mathbf{90.0\text{ Amp-Hours}}

\text{45-Day Drain} = 3.0\text{ Ah/day} \times 45\text{ days} = \mathbf{135.0\text{ Amp-Hours}}

In just 33 days, a tiny 125mA parasitic load will completely drain a 100Ah battery to absolute zero. Once the battery reaches 10.0V, the internal Battery Management System (BMS) triggers its Low-Voltage Disconnect (LVD) to prevent cell death. If the battery is left in this disconnected state for another month, internal micro-discharge will eventually pull the cells into destructive copper dissolution.

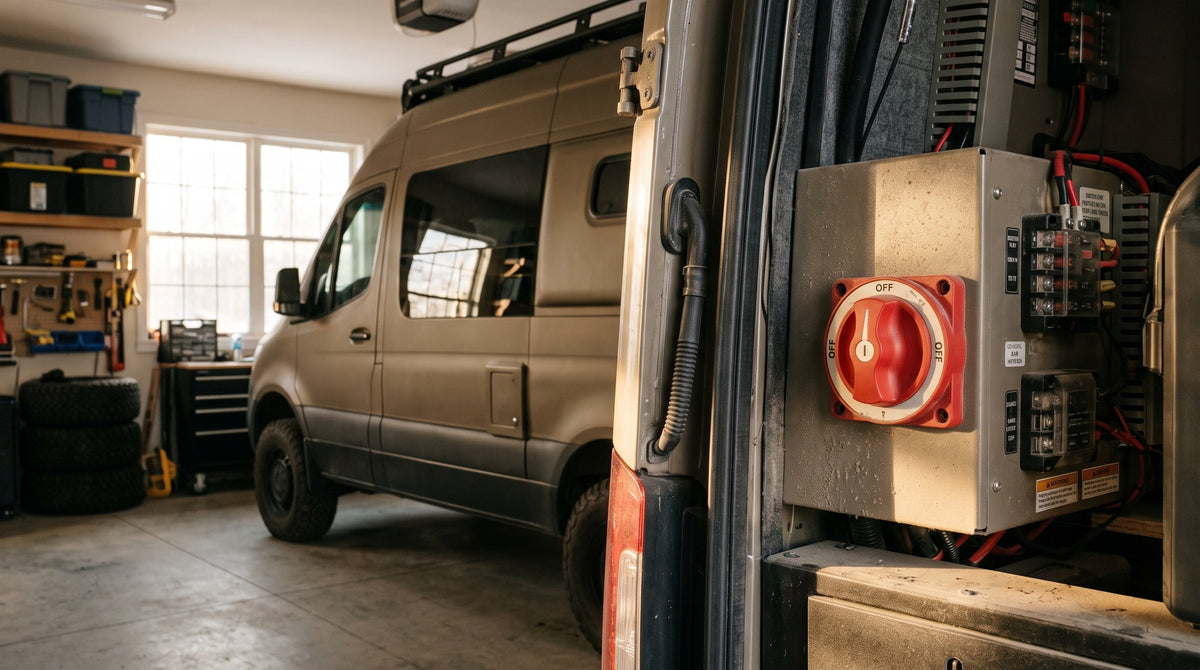

The Solution: True Physical Isolation

The only way to guarantee that a stored battery survives the off-season is 100% physical galvanic isolation:

1. Install a Heavy-Duty Master Disconnect Switch: Mount a commercial rotary disconnect switch (rated for at least 300A continuous) directly on the main battery cable. When parking for the season, turn the dial firmly to OFF.
2. The Failsafe Method (Disconnect the Negative Terminal): If your vehicle lacks a master switch, use a 10mm or 13mm wrench to physically unbolt the negative (-) cable from the battery terminal post. Wrap the cable end in an insulating rubber glove or rag and secure it away from the post. With the negative circuit broken, electron flow is physically impossible, reducing the drain to the battery’s near-zero internal chemistry rate.

---

Temperature Dynamics: Storage vs. Charging

A widespread misconception among outdoor travelers is that freezing temperatures destroy lithium batteries. This belief leads to intense confusion: Can I leave my lithium battery in my camper van during a Minnesota or Colorado winter?

To answer this, you must separate Storage from Charging:

```

┌────────────────────────────────────────────────────────────────────────┐

│ SUNTNEEW LIFEPO4 TEMPERATURE OPERATIONAL BOUNDARIES │

├────────────────────────────────────────────────────────────────────────┤

│ Operating Mode │ Safe Temperature Range │

├────────────────────┼───────────────────────────────────────────────────┤

│ Discharge (Load) │ -20°C to +60°C (-4°F to +140°F) │

│ Cold Storage (Idle)│ -20°C to +35°C (-4°F to +95°F) (Optimal 10°-25°C)│

│ Charging (Input) │ 0°C to +45°C (+32°F to +113°F) STRICT LIMIT! │

└────────────────────────────────────────────────────────────────────────┘

```

1. Storage in Sub-Zero Weather is Completely Safe

LiFePO4 cells can be safely stored in temperatures down to -20^\circ\text{C} (-4^\circ\text{F}). In fact, cool temperatures actually slow down electrochemical degradation, resulting in lower self-discharge rates than hot summer storage. Storing your fully disconnected G31 battery in an unheated garage during winter will cause zero chemical damage.

2. The Deadly Freezing Charging Hazard (Lithium Plating)

While discharging and storing in sub-zero weather is safe, attempting to charge a lithium iron phosphate battery when internal cell temperatures are below 32^\circ\text{F} (0^\circ\text{C}) is destructive.

At freezing temperatures, the chemical kinetics of the graphite anode slow down drastically. When a charging current forces lithium ions toward the anode, the ions cannot intercalate (insert themselves) into the graphite lattice fast enough. Instead, the lithium ions accumulate on the exterior surface of the anode as pure, metallic lithium metal.

This phenomenon—known as Lithium Plating—is irreversible. It permanently robs the battery of usable capacity and forms sharp metallic dendrites that can puncture the micro-porous separator, causing an internal short circuit and thermal runaway.

The SuntNeew BMS Safeguard: The SuntNeew G31 features an integrated intelligent Battery Management System (BMS) with Low-Temperature Charge Protection. When internal temperature sensors detect ambient conditions below 32^\circ\text{F} (0^\circ\text{C}), the BMS automatically disconnects the charge circuit, allowing loads to run while preventing destructive current from entering the cells.

3. Thermal Rules for the SuntNeew A20 Jump Starter

Portable jump starters use high-discharge lithium-ion cells (typically NMC chemistry). They face a different seasonal hazard: excessive heat in summer.

On a sunny 90^\circ\text{F} (32^\circ\text{C}) summer day, the interior of a closed car acts like a greenhouse. A dashboard or rear parcel shelf can reach temperatures exceeding 160^\circ\text{F} (71^\circ\text{C}). Storing a lithium jump starter in direct sunlight under those temperatures will rapidly degrade cell capacity and may cause cell swelling.

• Summer Rule: Store your A20 jump starter in the lowest, coolest section of the vehicle—under a front passenger seat or inside an insulated trunk storage compartment.
• Winter Rule: While the A20 is operational down to -4^\circ\text{F} (-20^\circ\text{C}), keeping the unit inside your heated home or cabin before a long winter journey ensures the internal cells are at room temperature (70^\circ\text{F}), maximizing cranking power when you need it most.

---

The Seasonal Winterization Protocol: A Step-by-Step SOP

Follow this chronological protocol when preparing your auxiliary power setup for storage:

Phase 1: Pre-Storage Conditioning (Autumn)

1. Inspect Physical Condition: Check the battery casing for dust, oil, or debris. Clean the top lid with a clean, dry microfiber cloth.
2. Inspect Terminals: Look for loose terminal bolts, white corrosion, or discolored copper lugs.
3. Condition to 50% SoC:

• If the battery is currently 100% full, run your 12V fridge or lights for a few hours until your battery monitor indicates roughly 50% State of Charge (approx. 13.20\text{V} \text{ to } 13.25\text{V} resting voltage).
• If the battery is deeply discharged, charge it using a dedicated LiFePO4 profile until it reaches 50% capacity.

1. Execute Physical Disconnection:

• Turn your master rotary battery disconnect switch to OFF.
• Or, physically unbolt the negative (-) cable from the battery post and insulate the terminal.

1. Record Baseline Metrics: Use a digital multimeter to measure open-circuit terminal voltage and log the date and voltage in your maintenance notebook.

Phase 2: Mid-Winter Health Check (Every 90 Days)

1. Every 90 days, visit your vehicle with a digital multimeter.
2. Measure the open-circuit voltage across the battery posts.
3. Evaluation:

• If voltage is above 13.00V: The battery is in perfect health. No action is required.
• If voltage has dropped below 12.80V: A small parasitic load may still be connected, or the battery was stored with less capacity than estimated. Connect a multi-stage lithium charger and top the battery back up to roughly 50% SoC (13.2V). Ensure ambient temperature is above 32^\circ\text{F} (0^\circ\text{C}) before charging.

1. Check the A20 Jump Starter: Press the power button on the A20. If the display shows fewer than 3 bars (below 75%), plug it into a standard USB charger for 1 to 2 hours until topped off.

Phase 3: Spring Awakening & Commissioning Protocol (Spring)

Before embarking on your first spring journey, bring your battery system back to full operational readiness:

1. Verify Ambient Temperature: Ensure the battery compartment is above freezing (>32^\circ\text{F} / 0^\circ\text{C}). If the vehicle was stored in an unheated barn during deep freeze, allow the vehicle to sit in warm spring sunshine or run the cabin heater before initiating high-amperage charging.
2. Reconnect Hardware:

• Reattach the negative (-) battery lead to the brass terminal post.
• Verify the washer stack order: Terminal Face \rightarrow Copper Lug \rightarrow Flat Washer \rightarrow Spring Lock Washer \rightarrow Bolt Head.
• Torque the M8 terminal bolts to 9.0\text{ to } 11.0\text{ N}\cdot\text{m} \ (80\text{ to } 97\text{ in-lbs}) using a torque wrench.

1. Perform a Full Balancing Saturation Charge:

• Connect the vehicle to shore power or engage your solar charger.
• Charge the battery continuously until it reaches the absorption voltage of 14.4\text{V} \text{ to } 14.6\text{V}.
• Why this matters: The internal cell balancing circuitry inside the SuntNeew BMS only activates when battery voltage exceeds 14.2\text{V} (3.55\text{V} per cell). Leaving the battery on charge at 14.4\text{V} for 2 to 4 hours allows the BMS to balance any minute voltage variances that developed between the four individual internal cells during winter dormancy.

1. Perform a Load Test: Turn on your 12V portable fridge and interior lighting for 30 minutes. Verify on your battery monitor that voltage remains stable above 13.0V under load.

---

Comparison Table: Winterizing Lead-Acid vs. AGM vs. LiFePO4

---

Frequently Asked Questions (FAQ)

Q1: Should I leave my camper van plugged into shore power all winter?

No, for lithium batteries this is not recommended. Leaving a camper continuously plugged into shore power forces the converter/charger to hold the lithium battery at an elevated float voltage (13.6\text{V} \text{ to } 14.4\text{V}) for months. This keeps the cathode under constant high-voltage potential, accelerating chemical degradation and shortening lifespan. The superior method is to charge the battery to 50% SoC (13.2\text{V}), turn the master disconnect switch to OFF, and leave shore power unplugged.

Q2: What if my solar panel continues charging the battery all winter?

If your camper is stored outdoors in the sun, a roof-mounted solar panel will attempt to charge the battery whenever sunlight is available. In freezing climates, this creates a hazard if your solar charge controller lacks low-temperature protection. While the SuntNeew G31 internal BMS will block freezing charge currents, relying on the BMS as your primary daily on/off switch is poor practice. The best approach is to cover the solar panels or open the solar PV disconnect breaker during winter storage.

Q3: What happens if my battery voltage drops to 0.0V in storage?

If you measure your G31 battery and see 0.0V on a multimeter, the battery is almost certainly not broken—it is in BMS Low-Voltage Protection Sleep Mode. When voltage drops below roughly 10.0V, the BMS opens its solid-state switches to prevent cell damage. Because the circuit is open, a standard voltmeter reads 0.0V. To wake the battery up, connect a lithium charger equipped with a 0V Wakeup / Force Charge function, or momentarily parallel a known 12V battery across the terminals for 5 seconds to supply voltage, reset the BMS relay, and allow charging to begin.

Q4: Can I store the SuntNeew A20 Jump Starter in my unheated car trunk in Canada or Alaska?

Yes. The A20 is rated for cold storage down to -20^\circ\text{C} (-4^\circ\text{F}). However, if ambient temperatures plunge below -20^\circ\text{C} (e.g., -30^\circ\text{C} / -22^\circ\text{F} in deep northern winters), the internal lithium cells will experience extreme internal resistance, temporarily reducing cranking power until warmed. If extreme arctic conditions are forecast, bring the A20 indoors and store it at room temperature before your departure.

Q5: Does disconnecting the battery cause my vehicle's computer to lose its settings?

Disconnecting an auxiliary leisure battery (the SuntNeew G31) has zero effect on the vehicle’s engine computer, because the engine ECU runs on the under-hood starting battery. If you disconnect your under-hood starting battery, your radio clock and trip odometer will reset, and modern vehicle ECUs may require a 10-minute idle period upon reconnection to re-learn throttle body calibration and fuel trim profiles.

Q6: Can I use dielectric grease on the terminals during winter storage?

Yes, highly recommended. After cleaning and torquing your M8 terminal bolts, coating the exposed metal fastener assembly with dielectric grease or commercial battery terminal sealant seals out moisture and airborne salts, preventing surface tarnishing during damp winter storage.

---

Seasonal Storage Master Checklist

• [ ] State of Charge Adjusted: Battery discharged or charged to 50% SoC (13.20\text{V}–13.25\text{V}).
• [ ] Physical Disconnection Executed: Master rotary switch turned to OFF, or negative lead unbolted.
• [ ] Parasitic Loads Verified at 0.00A: Multimeter confirmation that zero current leaves the battery.
• [ ] Solar Array Isolated: Solar PV circuit breaker switched off or panels covered in freezing climates.
• [ ] Terminals Cleaned and Torqued: M8 bolts verified at 9–11\text{ N}\cdot\text{m} with dielectric grease applied.
• [ ] A20 Jump Starter Conditioned: Unit verified at 3 bars (75%) and stored in a cool, dry location.
• [ ] Mid-Winter Check Scheduled: 90-day calendar reminder set to measure resting voltage.

---
